2759C-100

Active

Daburn Electronics

CABLE SPKR 2COND 18AWG CLR

Search across all available documentation for this part.

Active

Daburn Electronics

CABLE SPKR 2COND 18AWG CLR

Technical Specifications

Parameters and characteristics for this part

Specification	2759C-100

Cable Type	Speaker
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.198 in
Jacket (Insulation) Diameter [diameter]	5.03 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.64 mm
Jacket (Insulation) Thickness	0.0252 in
Jacket Color	Clear
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Home, Audio-Video
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket Color	Conductor Material	Jacket (Insulation) Material	Length [x]	Length [x]	Number of Conductors	Usage	Wire Gauge	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage
Daburn Electronics 2759C-100	Clear	Copper Bare	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	2	Audio-Video Home	18 AWG	Speaker	16	30 AWG	-20 C	60 °C	0.198 in	5.03 mm	0.64 mm	0.0252 in	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.29

General part information

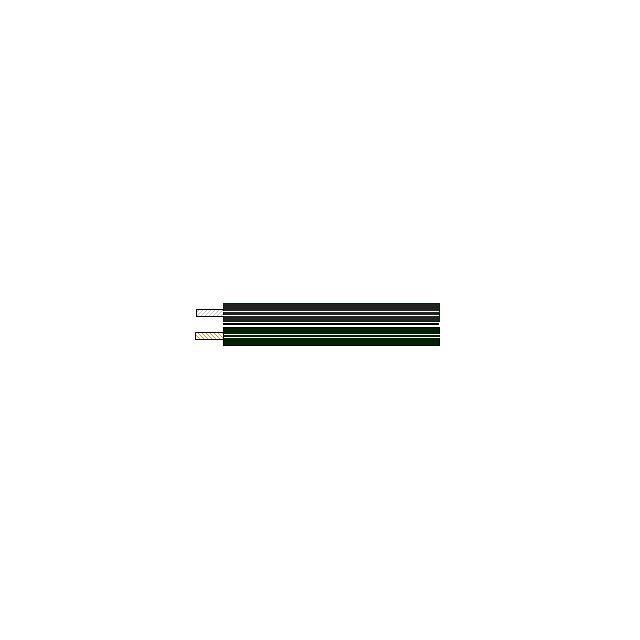

2 Conductor Speaker Cable Clear 18 AWG 100.0' (30.5m)
