ATS-FPS037058023-38-C1-R0

Active

Advanced Thermal Solutions Inc.

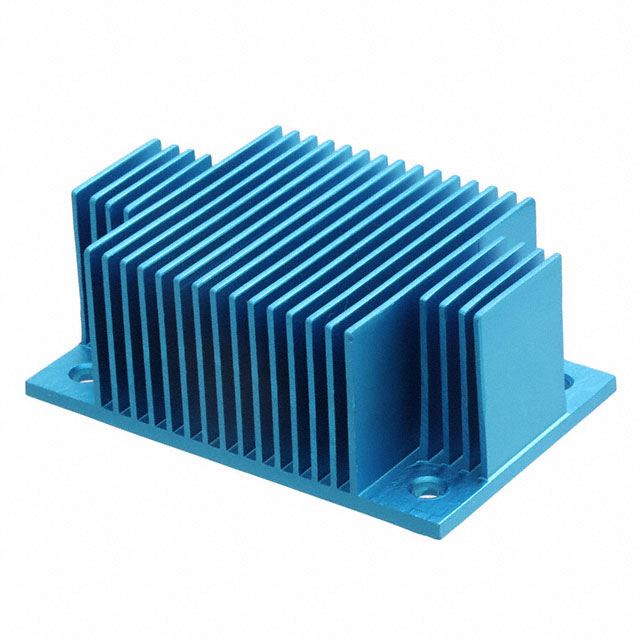

HEATSINK 36.83X57.6X22.86MM FP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-FPS037058023-38-C1-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 36.83X57.6X22.86MM FP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-FPS037058023-38-C1-R0

Attachment Method	Push Pin
Fin Height [z]	0.9 in
Fin Height [z]	22.86 mm
Length	1.45 in
Length	36.83 mm
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	6.4 °C/W
Type	Top Mount
Width	2.267 in
Width	57.6 mm

ATS-FPS Series

Part	Shape	Fin Height	Fin Height	Width	Width [y]	Material	Attachment Method	Material Finish	Type	Thermal Resistance @ Forced Air Flow	Length	Length	Package Cooled	Width	Width [y]	Fin Height [z]	Fin Height [z]
Advanced Thermal Solutions Inc. ATS-FPS058037011-32-C3-R0	Rectangular Fins	11.43 mm	0.45 in	36.83 mm	1.45 "	Aluminum	Push Pin	Blue Anodized	Top Mount	21.54 °C/W	2.28 "	57.9 mm	ASIC BGA CPU LGA
Advanced Thermal Solutions Inc. ATS-FPS037058011-36-C2-R0	Rectangular Fins	11.43 mm	0.45 in	57.6 mm		Aluminum	Push Pin	Blue Anodized	Top Mount	14.82 °C/W 100 LFM	1.45 in	36.83 mm	ASIC BGA CPU LGA	2.267 in
Advanced Thermal Solutions Inc. ATS-FPS058061011-40-C1-R0	Rectangular Fins	11.43 mm	0.45 in		2.4 in	Aluminum	Push Pin	Blue Anodized	Top Mount	14.55 °C/W	2.28 "	57.9 mm	ASIC BGA CPU LGA		60.96 mm
Advanced Thermal Solutions Inc. ATS-FPS058037018-33-C2-R0	Rectangular Fins			36.83 mm	1.45 "	Aluminum	Push Pin	Blue Anodized	Top Mount	17.42 °C/W	2.28 "	57.9 mm	ASIC BGA CPU LGA			17.78 mm	0.7 in
Advanced Thermal Solutions Inc. ATS-FPS058061011-40-C2-R0	Rectangular Fins	11.43 mm	0.45 in		2.4 in	Aluminum	Push Pin	Blue Anodized	Top Mount	14.56 °C/W	2.28 "	57.9 mm	ASIC BGA CPU LGA		60.96 mm
Advanced Thermal Solutions Inc. ATS-FPS058037011-32-C2-R0	Rectangular Fins	11.43 mm	0.45 in	36.83 mm	1.45 "	Aluminum	Push Pin	Blue Anodized	Top Mount	21.46 °C/W	2.28 "	57.9 mm	ASIC BGA CPU LGA
Advanced Thermal Solutions Inc. ATS-FPS058061023-42-C2-R0	Rectangular Fins				2.4 in	Aluminum	Push Pin	Blue Anodized	Top Mount	7.31 °C/W 100 LFM	2.28 "	57.9 mm	ASIC BGA CPU LGA		60.96 mm	22.86 mm	0.9 in
Advanced Thermal Solutions Inc. ATS-FPS058037023-34-C3-R0	Rectangular Fins			36.83 mm	1.45 "	Aluminum	Push Pin	Blue Anodized	Top Mount	14.4 °C/W	2.28 "	57.9 mm	ASIC BGA CPU LGA			22.86 mm	0.9 in
Advanced Thermal Solutions Inc. ATS-FPS037058023-38-C1-R0	Rectangular Fins			57.6 mm		Aluminum	Push Pin	Blue Anodized	Top Mount	6.4 °C/W	1.45 in	36.83 mm	ASIC BGA CPU LGA	2.267 in		22.86 mm	0.9 in
Advanced Thermal Solutions Inc. ATS-FPS058037023-34-C2-R0	Rectangular Fins			36.83 mm	1.45 "	Aluminum	Push Pin	Blue Anodized	Top Mount	14.33 °C/W	2.28 "	57.9 mm	ASIC BGA CPU LGA			22.86 mm	0.9 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.55
		10	$ 3.46
		25	$ 3.36
		50	$ 3.29

Description

General part information

ATS-FPS Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
