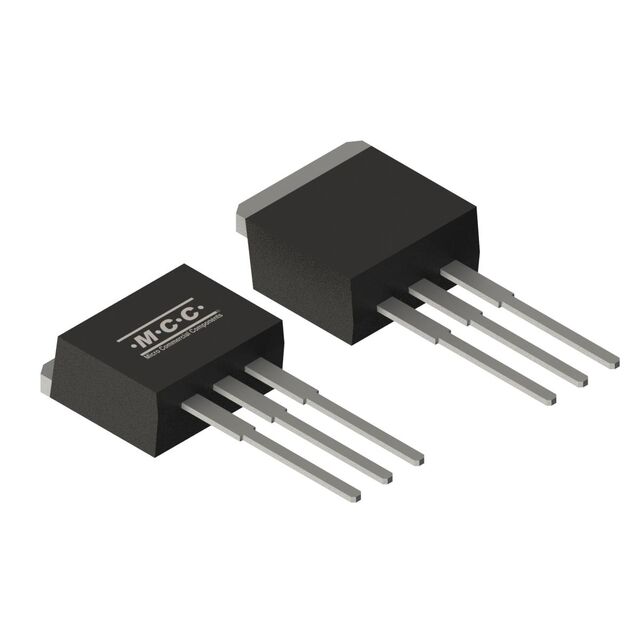

UGJL2030CTH-BP

Active

Micro Commercial Components

DIODE ARRAY GP 300V 20A TO262

Search across all available documentation for this part.

Active

Micro Commercial Components

DIODE ARRAY GP 300V 20A TO262

Technical Specifications

Parameters and characteristics for this part

Specification	UGJL2030CTH-BP

Current - Average Rectified (Io) (per Diode)	20 A
Current - Reverse Leakage @ Vr	10 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-262AA, TO-262-3 Long Leads, I2PAK
Reverse Recovery Time (trr)	25 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-262
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	300 V
Voltage - Forward (Vf) (Max) @ If	1.25 V

Part	Supplier Device Package	Technology	Reverse Recovery Time (trr)	Current - Average Rectified (Io) (per Diode)	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Diode Configuration
Micro Commercial Components UGJL2030CTH-BP	TO-262	Standard	25 ns	20 A	I2PAK TO-262-3 Long Leads TO-262AA	300 V	200 mA 500 ns	1.25 V	10 µA	Through Hole	175 ░C	-55 C	1 Pair Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.67

General part information

Diode Array 1 Pair Common Cathode 300 V 20A Through Hole TO-262-3 Long Leads, I2PAK, TO-262AA
