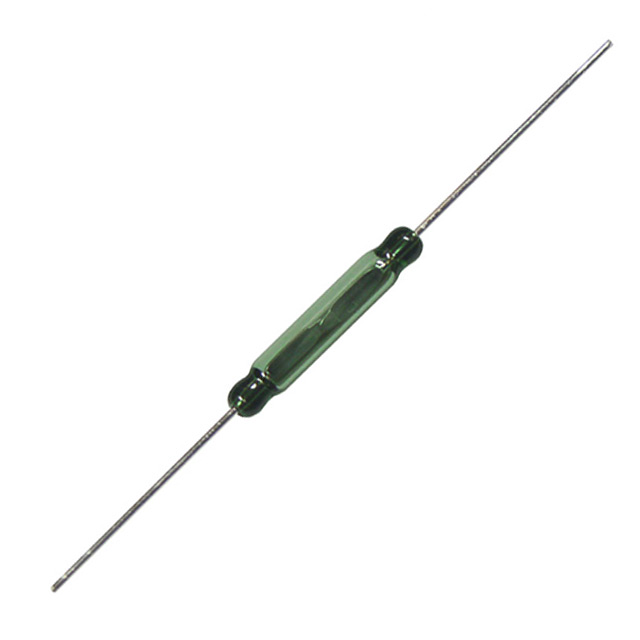

RI-46GP-5055

Active

Comus International

SWITCH REED SPST-NO 1A 250V

Search across all available documentation for this part.

Active

Comus International

SWITCH REED SPST-NO 1A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Current - Switching	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Switching DC	Release Time	Operate Range [Min]	Operate Range [Max]	Circuit	Length - Overall	Length - Overall	Size - Body [diameter]	Size - Body [diameter]	Size - Body [x]	Size - Body [x]	Mounting Type	Capacitance	Power - Rated	Termination Style	Release Range [Max]	Release Range [Min]
Comus International RI-46GP2530	1 A	0.35 ms	-55 °C	125 °C	Glass Body Reed	200 V	0.03 ms	25	30 AT	SPST-NO	54.79 mm	2.157 "	0.106 in	2.7 mm	20.5 mm	0.807 "	Through Hole	0.2 pF	40 W	Axial
Comus International RI-46GP-5055	1 A	0.35 ms	-55 °C	125 °C	Glass Body Reed	200 V	0.03 ms	50	55 AT	SPST-NO	54.79 mm	2.157 "	0.106 in	2.7 mm	20.5 mm	0.807 "	Surface Mount	0.2 pF	40 W	Axial	51 AT	43

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.60

General part information

Glass Body Reed Switch SPST-NO 50 ~ 55AT Operate Range 40W 1A (AC/DC) 250 V Surface Mount
