5510003828F

Active

DIALIGHT

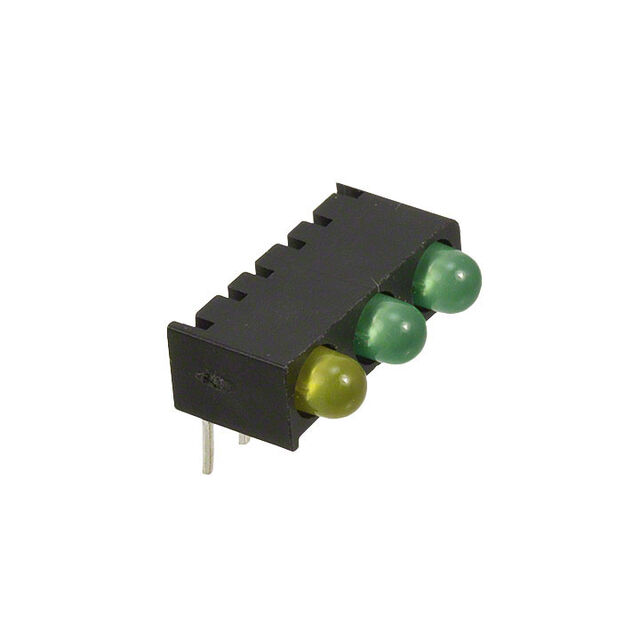

LED CBI 3MM TRI GRN/YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5510003828F

Active

DIALIGHT

LED CBI 3MM TRI GRN/YELLOW RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5510003828F

Color	Green (x 2), Yellow (x 1)
Configuration	3 Wide
Current [custom]	30 mA
Current [custom]	20 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Millicandela Rating [custom]	10 mcd
Millicandela Rating [custom]	12.6 mcd
Mounting Type	Through Hole, Right Angle
Voltage Rating	2.1 V, 2.1 V
Wavelength - Peak	565 nm, 585 nm

55100038 Series

Part	Lens Size	Lens Size	Color	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage Rating	Configuration	Lens Style	Mounting Type	Current [custom]	Current [custom]
DIALIGHT 5510003806F	3 mm	T-1	Green (x 2) Yellow (x 1)	565 nm 585 nm	10 mcd	12.6 mcd	2.1 V 2.1 V	3 Wide	Round with Domed Top	Through Hole Right Angle
DIALIGHT 5510003802F			Green (x 2) Yellow (x 1)	565 nm 585 nm	10 mcd	12.6 mcd	2.1 V 2.1 V	3 Wide		Through Hole Right Angle
DIALIGHT 5510003828F	3 mm	T-1	Green (x 2) Yellow (x 1)	565 nm 585 nm	10 mcd	12.6 mcd	2.1 V 2.1 V	3 Wide	Round with Domed Top	Through Hole Right Angle	30 mA	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.08
		10	$ 1.36
		100	$ 0.99
		500	$ 0.85
		1000	$ 0.82

Description

General part information

55100038 Series

LED Circuit Board Indicator LED Circuit Board Indicator 3 Wide Green (x 2), Yellow (x 1) 2.1V Green, 2.1V Yellow 30mA Green, 20mA Yellow Round with Domed Top 3mm, T-1 Through Hole, Right Angle
