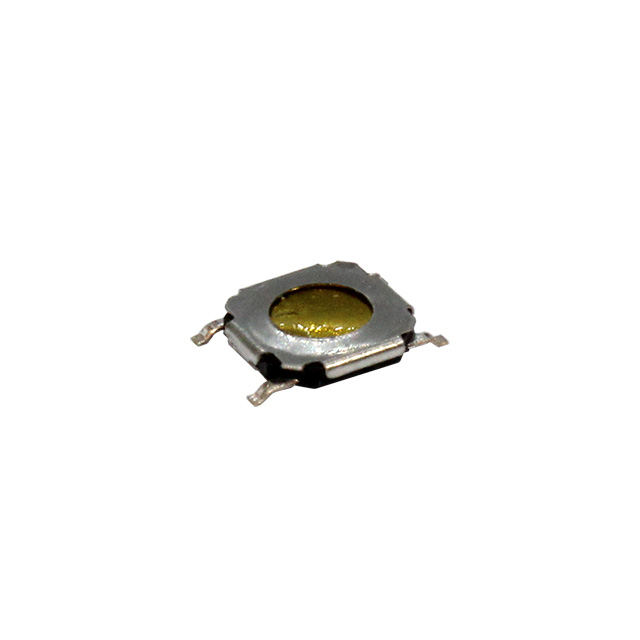

CS1204F160

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CS1204F160

Actuator Height off PCB, Vertical	0.8 mm
Actuator Material	Brass, Nickel Plated
Actuator Orientation	Top Actuated
Actuator Type	Flush
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	5.2 mm
Outline [y]	5.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

Part	Contact Rating @ Voltage	Switch Function	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Illumination	Actuator Material	Actuator Orientation	Actuator Height off PCB, Vertical	Mounting Type	Circuit	Switch Travel	Outline [y]	Outline [x]
CIT Relay and Switch CS1204F160	0.05 A 50 VDC	Off-Mom	Flush	85 °C	-40 °C	Gull Wing	Non-Illuminated	Brass Nickel Plated	Top Actuated	0.8 mm	Surface Mount	SPST-NO	0.25 mm	5.2 mm	5.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
