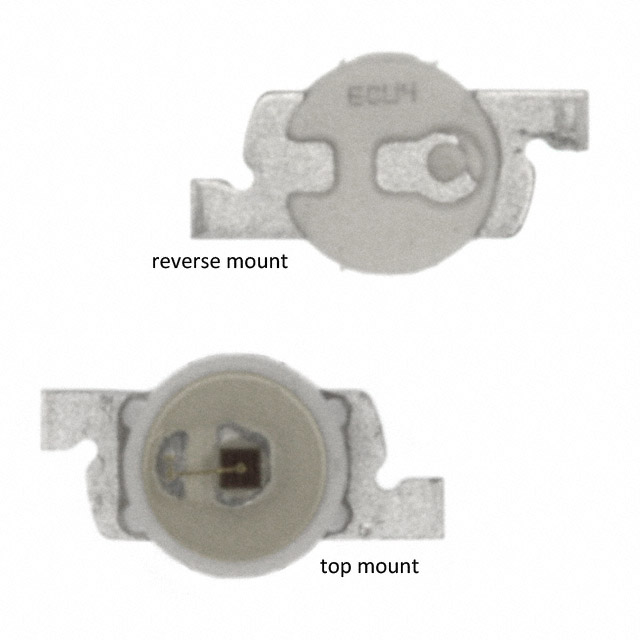

LY P47F-U2AB-36-4A5B-Z

Active

ams-OSRAM USA INC.

LED YELLOW CLEAR SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED YELLOW CLEAR SMD

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Current - Test	Supplier Device Package	Package / Case	Mounting Type	Lens Size [diameter]	Color	Wavelength - Peak	Viewing Angle	Wavelength - Dominant	Lens Transparency	Lens Color	Height (Max) [Max]	Configuration
ams-OSRAM USA INC. LY P47F-V2BA-36-3B5B-30-R18-Z	2.05 V	3.4 mm	1.9 mm	1570 mcd	30 mA	SMD	2-SMD Flat Leads	Surface Mount Bottom Entry	1.6 mm	Yellow	597 nm	120 °	590 nm	Clear	Colorless	0.88 mm
ams-OSRAM USA INC. LY P47F-U2AB-36-3B5A-Z	2.05 V	3.4 mm	1.9 mm		30 mA	SMD	2-SMD Flat Leads	Surface Mount Bottom Entry	1.6 mm	Yellow	597 nm	120 °	590 nm	Clear	Colorless	0.88 mm	Standard
ams-OSRAM USA INC. LY P47F-U2AB-36-4A5B-Z	2.35 V	3.4 mm	1.9 mm		30 mA	SMD	2-SMD Flat Leads	Surface Mount Bottom Entry	1.6 mm	Yellow	597 nm	120 °	590 nm	Clear	Colorless	0.88 mm	Standard
ams-OSRAM USA INC. LY P47F-V2BA-36-3B5B-30-R18F-Z	2.05 V	3.4 mm	1.9 mm	1570 mcd	30 mA	SMD	2-SMD Flat Leads	Surface Mount	1.6 mm	Yellow	597 nm	120 °	590 nm	Clear	Colorless	0.88 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Yellow 590nm LED Indication - Discrete 2.35V 2-SMD, Flat Leads
