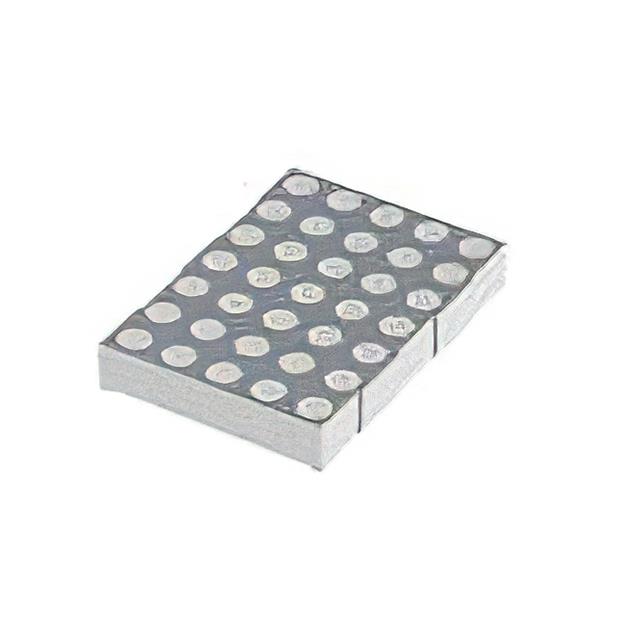

TA20-11SURWA

Active

Kingbright

2" 5X7 RED DOT MATRIX LED DISPLA

Search across all available documentation for this part.

Active

Kingbright

2" 5X7 RED DOT MATRIX LED DISPLA

Technical Specifications

Parameters and characteristics for this part

Part	Color	Configuration [y]	Configuration [x]	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Internal Connection	Millicandela Rating
Kingbright TA20-11SURKWA	Red	7	5	1.95 V	38.2 mm	1.98 in	53.1 mm	2.09 in	0.33 in	8.5 mm	Common Anode Column Common Cathode Row	130 mcd
Kingbright TA20-11CGKWA	Green	7	5	2.1 V	38.2 mm	1.98 in	53.1 mm	2.09 in	0.33 in	8.5 mm	Common Anode Column Common Cathode Row	52 mcd
Kingbright TA20-11EWA	Red	7	5	2 V	53.1 mm	2.09 "	38.1 mm	1.5 in	0.33 in	8.5 mm	Common Anode Column Common Cathode Row	10 mcd
Kingbright TA20-11SURWA	Red	7	5	1.85 V	37.65 mm	1.48 in	53 mm	2.09 in	0.33 in	8.45 mm	Common Anode	100 mcd
Kingbright TA20-11GWA	Green	7	5	2.2 V	53.1 mm	2.09 "	38.1 mm	1.5 in	0.33 in	8.5 mm	Common Anode Column Common Cathode Row	15 mcd
Kingbright TA20-11SYKWA	Yellow	7	5	2 V	38.2 mm	1.98 in	53.1 mm	2.09 in	0.33 in	8.5 mm	Common Anode Column Common Cathode Row	160 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dot Matrix Display Module 5 x 7 Common Anode Red 1.85V 2.09" L x 1.48" W x 0.33" H (53.00mm x 37.65mm x 8.45mm)
