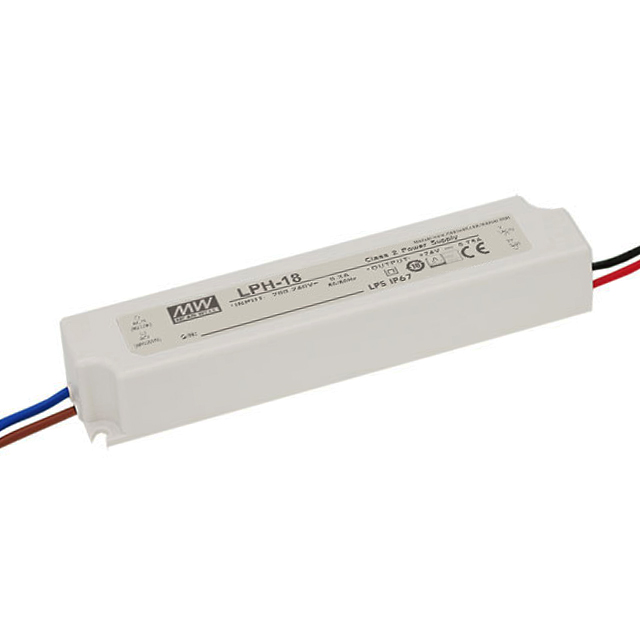

LPH-18-12
ActiveMEAN WELL USA Inc.
LED DRIVER CV AC/DC 12V 1.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPH-18-12
ActiveMEAN WELL USA Inc.
LED DRIVER CV AC/DC 12V 1.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPH-18-12 |
|---|---|
| Approval Agency | CB, CE, TUV |
| Current - Output (Max) [Max] | 1.5 A |
| Efficiency | 77 % |
| Features | OVP, OCP, OTP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 18 W |
| Ratings | IP67 |
| Size / Dimension [x] | 5.51 " |
| Size / Dimension [x] | 140 mm |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [y] | 1.18 in |
| Size / Dimension [z] | 22 mm |
| Size / Dimension [z] | 0.87 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 264 VAC |
| Voltage - Input (Min) [Min] | 180 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 9.19 | |
| 5 | $ 8.52 | |||
| 10 | $ 8.25 | |||
| 25 | $ 7.90 | |||
Description
General part information
LPH-18 Series
1.5A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
