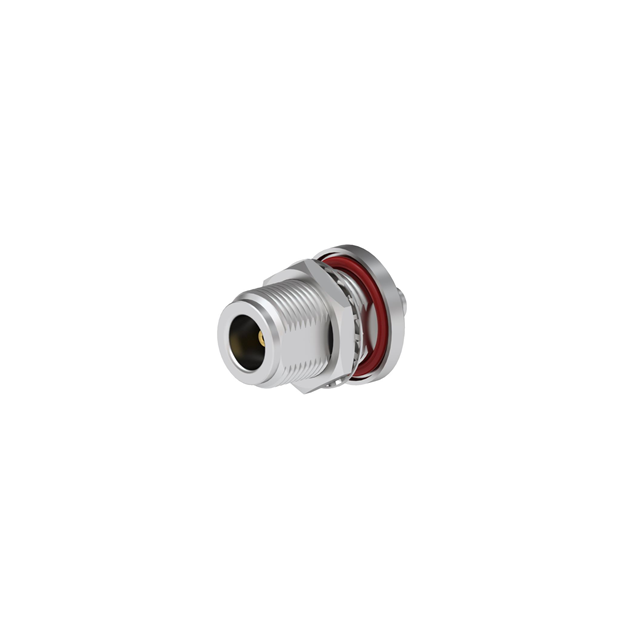

R191332000

Active

Radiall USA, Inc.

N F-SMA F BHDP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N F-SMA F BHDP

Technical Specifications

Parameters and characteristics for this part

Specification	R191332000

Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Conversion Type	Convert From (Adapter End)	Center Contact Material	Style	Adapter Type	Dielectric Material	Impedance	Center Contact Plating	Mating Cycles	Center Gender	Frequency - Max [Max]	Body Material	Body Finish	Mounting Feature	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]
Radiall USA, Inc. R191332000	Between Series	Female Socket N Jack	Beryllium Copper	Straight	Jack to Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	500	Female to Female	11 GHz	Brass	Nickel	Bulkhead	Female Socket SMA Jack	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
