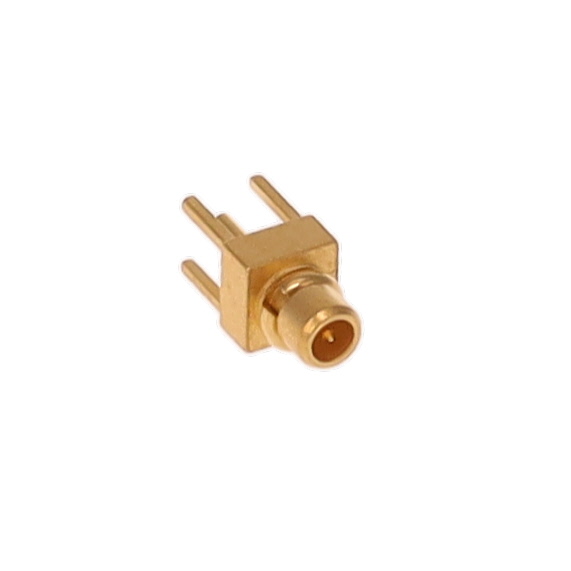

81_MMCX-50-0-1/111_OE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

81_MMCX-50-0-1/111_OE

Technical Specifications

Parameters and characteristics for this part

Specification	81_MMCX-50-0-1/111_OE

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

Part	Center Contact Material	Mounting Type	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Contact Termination	Body Material	Number of Ports	Mating Cycles	Connector Type	Center Contact Plating	Body Finish	Impedance	Frequency - Max [Max]	Connector Style	Fastening Type	Shield Termination	Voltage Rating
Huber+Suhner, Inc. 81_MMCX-50-0-1/111_OE	Beryllium Copper	Through Hole	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	Gold	Solder	Brass	1	500	Male Pin Plug	Gold	Gold	50 Ohms	6000 MHz	MMCX	Snap-On	Solder	170 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Plug, Male Pin 50 Ohms Through Hole Solder
