Q8F5BXXHY12E
ActiveAPEM

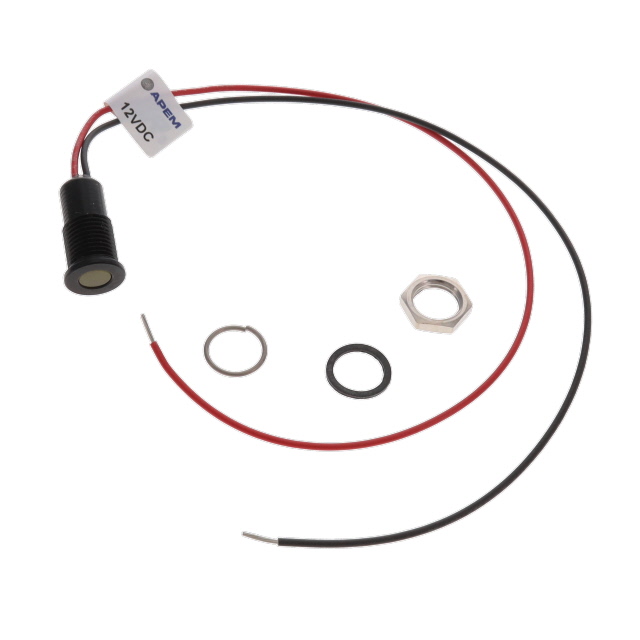

LED PANEL INDICATOR, YELLOW, 8MM, 12VDC ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
Q8F5BXXHY12E
ActiveAPEM
LED PANEL INDICATOR, YELLOW, 8MM, 12VDC ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q8F5BXXHY12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Size [diameter] | 5 mm Dia |
| Lens Transparency | Diffused |
| Millicandela Rating | 250 mcd |
| Panel Cutout Dimensions | 8 mm |
| Panel Cutout Dimensions | 0.315 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 11.69 | |
| 10 | $ 10.90 | |||
| 25 | $ 10.02 | |||
| 50 | $ 9.13 | |||
| 100 | $ 8.28 | |||
| 250 | $ 7.32 | |||
Description
General part information
Q8F5BXXHY Series
LED Panel Indicator Yellow Diffused 100° 12V 20mA Wire Leads - 7.87" (200.00mm)
