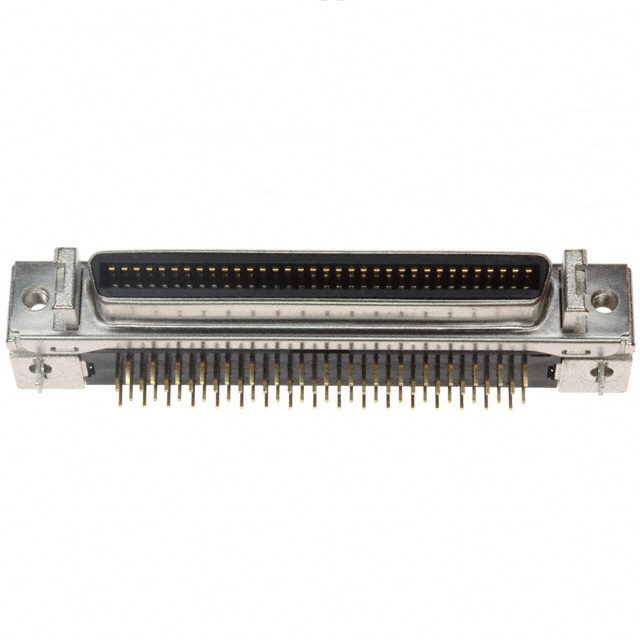

10268-5JBEPC

Obsolete

3M (TC)

CONN SCSI-2 RCPT 68POS R/A SLDR

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN SCSI-2 RCPT 68POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	10268-5JBEPC

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded, Board Lock
Flange Feature	Housing/Shell
Flange Feature	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	68
Number of Rows	2
Termination	Solder
Type	SCSI-2

Part	Termination	Connector Type	Flange Feature	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Style	Number of Rows	Number of Positions	Contact Finish	Features	Connector Type	Type
3M (TC) 10268-5212PC	Solder	Receptacle	Housing/Shell	2.6 M	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	2	68	Gold
3M (TC) 10268-6202VC	Solder	Receptacle	Housing/Shell	2.6 M	0.76 Ám	30 Áin	Panel Mount Through Hole	Outer Shroud Contacts	2	68	Gold	Shielded
3M (TC) 10268-55H3PL	Solder	Receptacle	Housing/Shell (4-40) Latchblocks		0.2 µm	7.87 µin	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	2	68	Gold	Board Lock Shielded
3M (TC) 10268-R21CS	Press-Fit	Receptacle	Housing/Shell	2.6 M	0.76 Ám	30 Áin	Panel Mount Through Hole	Outer Shroud Contacts	2	68	Gold	Shielded
3M (TC) 10268-M218VE	Solder	Stacked	Housing/Shell	2.6 M	0.51 µm	20 µin	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	2	68	Gold	Shielded	2 Plugs
3M (TC) 10268-5212PL
3M (TC) 10268-5JBEPC	Solder	Receptacle	Housing/Shell	2.6 M	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Outer Shroud Contacts	2	68	Gold	Board Lock Shielded		SCSI-2
3M (TC) 10268-R20CS	Press-Fit	Receptacle	Housing/Shell	2.6 M	0.76 Ám	30 Áin	Panel Mount Through Hole	Outer Shroud Contacts	2	68	Gold	Shielded
3M (TC) 10268-6212VC	Solder	Receptacle	Housing/Shell	2.6 M	0.76 Ám	30 Áin	Panel Mount Through Hole	Outer Shroud Contacts	2	68	Gold	Shielded
3M (TC) 10268-6202PL	Solder	Receptacle	Housing/Shell Latchblocks		0.2 µm	7.87 µin	Panel Mount Through Hole	Outer Shroud Contacts	2	68	Gold	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

68 Position Receptacle Connector SCSI-2 Panel Mount, Through Hole, Right Angle Solder
