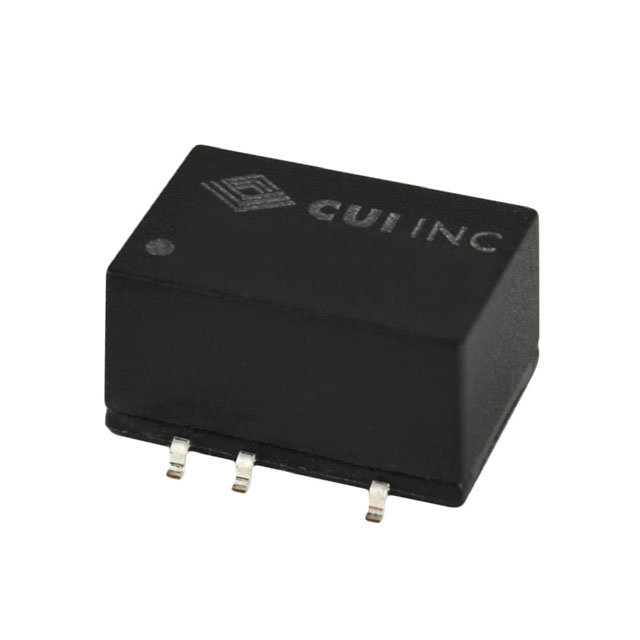

PCN1-S12-S15-M

CUI Inc.

DC DC CONVERTER 15V 1W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 15V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 2	Approval Agency	Package / Case	Applications	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input (Max) [Max]	Standard Number	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Type	Number of Outputs	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features
CUI Inc. PCN1-S12-D12-M-TR	-12 V	EN	10-SMD Module 5 Leads	ITE (Commercial)	10.8 V	100 °C	-40 °C	80 %	13.2 V	55032 Class A	1.5 kV	42 mA	42 mA	12 V	Isolated Module	2	Surface Mount	7.4 mm	0.29 "	0.39 "	9.8 mm	0.64 in	16.2 mm	SCP
CUI Inc. PCN1-S12-S15-M			8-SMD Module 5 Leads	ITE (Commercial)	10.8 V	100 °C	-40 °C	79 %	13.2 V		1.5 kV	67 mA		15 V	Isolated Module	1	Surface Mount	7.4 mm	0.29 "	0.39 "	9.8 mm	0.54 in	13.7 mm	SCP
CUI Inc. PCN1-S12-D12-S	-12 V	EN	6-SIP Module 5 Leads	ITE (Commercial)	10.8 V	100 °C	-40 °C	80 %	13.2 V	55032 Class A	1.5 kV	42 mA	42 mA	12 V	Isolated Module	2	Through Hole	10.2 mm	0.4 "	0.28 in	7.2 mm	0.77 in	19.5 mm	SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	430	$ 3.94

General part information

Isolated Module DC DC Converter 1 Output 15V 67mA 10.8V - 13.2V Input

Technical documentation and resources

No documents available
