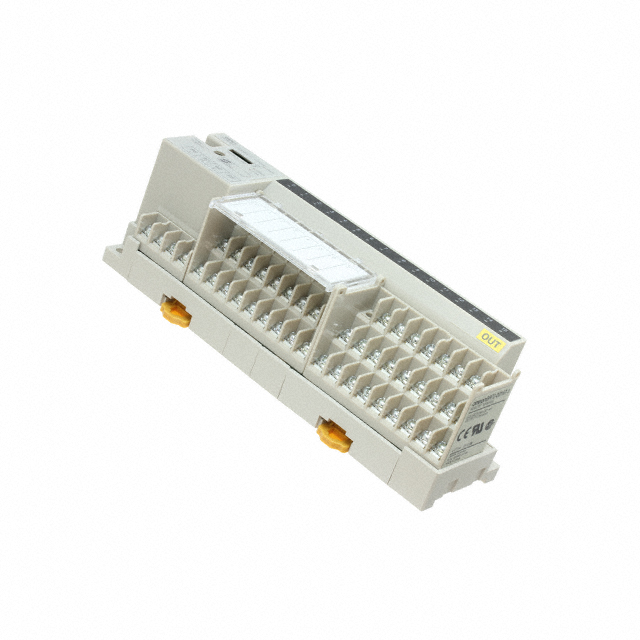

SRT2-OD16T-1

Obsolete

Omron Electronics Inc-EMC Div

OUTPUT MODULE 16 SOLID STATE 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRT2-OD16T-1

Obsolete

Omron Electronics Inc-EMC Div

OUTPUT MODULE 16 SOLID STATE 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRT2-OD16T-1

Approval Agency	UL, CSA, CE
For Use With/Related Products	C Series
Mounting Type	DIN Rail
Number of Outputs and Type	Solid State
Number of Outputs and Type	16 Outputs
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Screw Terminal
Type	Output Module
Voltage - Supply	24 VDC
Weight	300.28 g
Weight	0.662 lb

SRT2-OD Series

Part	Voltage - Supply	Termination Style	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Approval Agency	Type	Weight	Weight	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	For Use With/Related Products	Mounting Type	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Ingress Protection	Number of Outputs and Type	Number of Outputs and Type
Omron Electronics Inc-EMC Div SRT2-OD32ML-1	24 VDC	Rectangular Connector	32	Solid State	CE	Output Module	90.26 g	0.199 lb	55 °C	-10 °C	C Series	DIN Rail
Omron Electronics Inc-EMC Div SRT2-OD04-1	24 VDC	Screw Terminal	4	Solid State	CE CSA UL	Output Module	79.83 g	0.176 lb			C Series	DIN Rail
Omron Electronics Inc-EMC Div SRT2-OD08CL-1	24 VDC	Screw Terminal			CE	Output Module	239.95 g	0.529 lb			C Series	DIN Rail	8	Solid State	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div SRT2-OD16T-1	24 VDC	Screw Terminal			CE CSA UL	Output Module	300.28 g	0.662 lb	55 °C	-10 °C	C Series	DIN Rail				Solid State	16 Outputs
Omron Electronics Inc-EMC Div SRT2-OD08-1	24 VDC	Screw Terminal			CE CSA UL	Output Module	79.83 g	0.176 lb			C Series	DIN Rail	8	Solid State
Omron Electronics Inc-EMC Div SRT2-OD32ML	24 VDC	Rectangular Connector	32	Solid State	CE	Output Module	90.26 g	0.199 lb	55 °C	-10 °C	C Series	DIN Rail
Omron Electronics Inc-EMC Div SRT2-OD04CL	24 VDC	Screw Terminal	4	Solid State	CE	Output Module	180.08 g	0.397 lb			C Series	DIN Rail			IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div SRT2-OD08S	24 VDC	Screw Terminal				Output Module	100.24 g	0.221 lb			C Series	DIN Rail	8	Solid State
Omron Electronics Inc-EMC Div SRT2-OD04CL-1	24 VDC	Screw Terminal	4	Solid State	CE	Output Module	180.08 g	0.397 lb			C Series	DIN Rail			IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SRT2-OD Series

Output Module DIN Rail 24VDC
