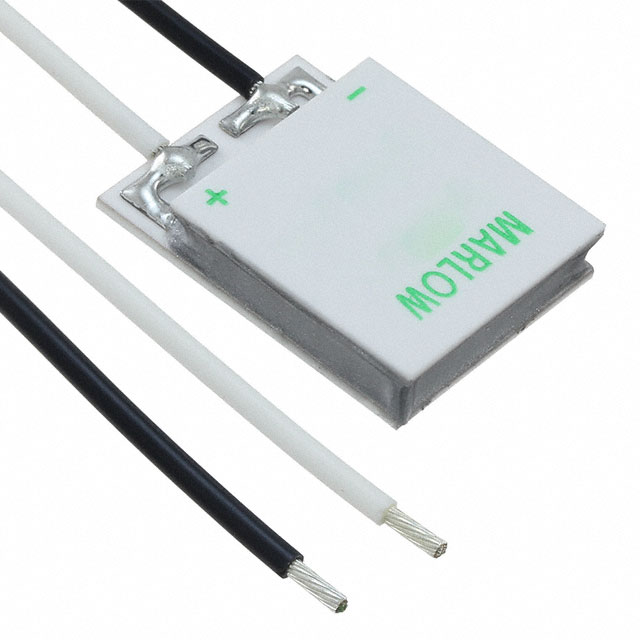

RC3-2.5-01LS
ActiveMarlow Industries, Inc.
TEM 16X16X3.94MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC3-2.5-01LS
ActiveMarlow Industries, Inc.
TEM 16X16X3.94MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC3-2.5-01LS |
|---|---|
| Current - Max [Max] | 2.5 A |
| Delta Tmax @ Th | 65 °C |
| Features | Lapped, Sealed, Lead Wires |
| Height [z] | 3.94 mm |
| Number of Stages | 1 |
| Operating Temperature | 130 °C |
| Qmax @ Th | 6 W |
| Resistance | 1.2 Ohms |
| Size / Dimension [x] | 20.5 mm |
| Size / Dimension [y] | 16 mm |
| Voltage - Max [Max] | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 22.00 | |
| 5 | $ 20.65 | |||
| 10 | $ 20.16 | |||
| 25 | $ 19.42 | |||
| 60 | $ 18.93 | |||
| 120 | $ 18.44 | |||
Description
General part information
RC3-2 Series
Peltier Module 6.0W @ 25°C 2.5 A 130°C
