1056741-1

Active

TE Connectivity Aerospace, Defense and Marine

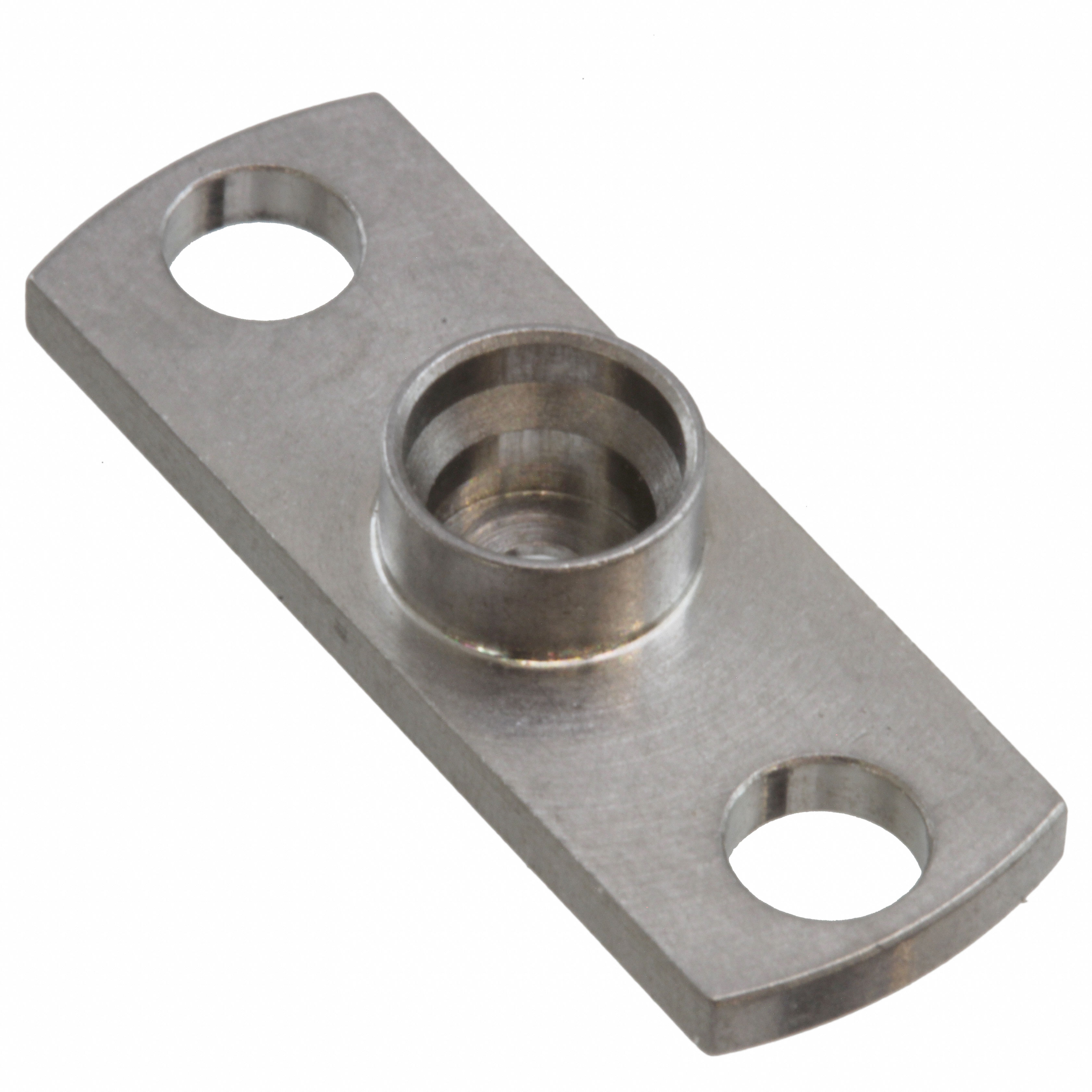

CONN SHROUD FOR SMP CONNECTORS

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN SHROUD FOR SMP CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	1056741-1

Accessory Type	Shroud
Body Material	Stainless Steel
Color	Silver
Features	Full Detent, Flange Mount (2 Hole)
For Use With/Related Products	SMP Connectors

Part	Features	Cable Group	Center Contact Plating	Fastening Type	Dielectric Material	Body Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Number of Ports	Shield Termination	Body Finish	Center Contact Material	Connector Type	Voltage Rating	Includes	Frequency - Max [Max]	Contact Termination	Mounting Type	Accessory Type	For Use With/Related Products	Color	Cable Group	Connector Style
TE Connectivity Aerospace, Defense and Marine 1056522-1	EMI Ring	RG-405 (.085" Semi Rigid)	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Gold	-65 ░C	165 °C	50 Ohms	1	Solder	Gold	Beryllium Copper	Female Socket Jack	335 V	Connector Contact Insulator	40 GHz	Solder	Free Hanging (In-Line)
TE Connectivity Aerospace, Defense and Marine 1056741-1	Flange Mount (2 Hole) Full Detent					Stainless Steel															Shroud	SMP Connectors	Silver
TE Connectivity Aerospace, Defense and Marine 1056550-1	EMI Ring	Semi Rigid	Gold	Snap-On	Tetrafluoroethylene (TFE)	Beryllium Copper	Gold	-65 ░C	165 °C	50 Ohms	1	Solder	Gold	Beryllium Copper	Female Socket Jack	335 V		26.5 GHz	Solder	Free Hanging (In-Line) Right Angle				0.047 in
TE Connectivity Aerospace, Defense and Marine 1056742-1	Full Detent					Stainless Steel															Housing	SMP Connectors	Silver
TE Connectivity Aerospace, Defense and Marine 1056555-1			Gold		Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	-65 ░C	165 °C	50 Ohms	1	Solder	Gold	Beryllium Copper	Female Socket Jack			18 GHz	Solder	Through Hole					SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 29.78

General part information

Connector Shroud For SMP Connectors
