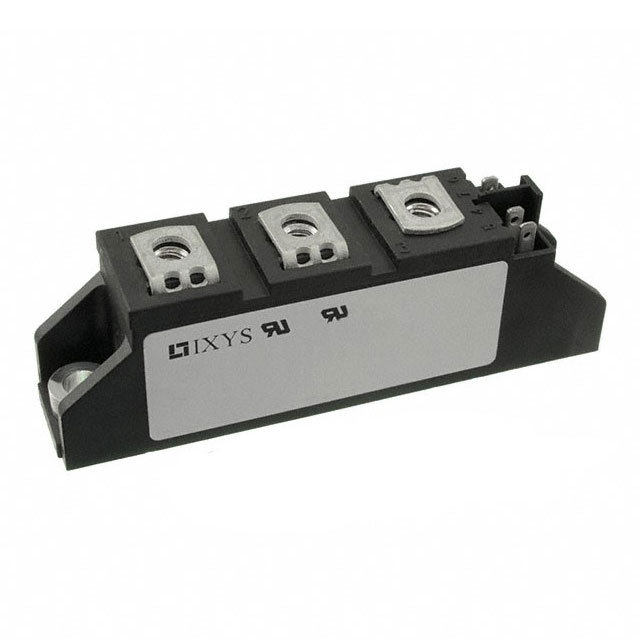

VMK90-02T2

Obsolete

IXYS

MOSFET 2N-CH 200V 83A TO240AA

Search across all available documentation for this part.

Obsolete

IXYS

MOSFET 2N-CH 200V 83A TO240AA

Technical Specifications

Parameters and characteristics for this part

Specification	VMK90-02T2

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	83 A
Drain to Source Voltage (Vdss)	200 V
Gate Charge (Qg) (Max) @ Vgs [Max]	450 nC
Input Capacitance (Ciss) (Max) @ Vds	15000 pF
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-240AA
Power - Max [Max]	380 W
Rds On (Max) @ Id, Vgs	25 mOhm
Supplier Device Package	TO-240AA
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	4 V

Part	Configuration	Vgs(th) (Max) @ Id	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Technology	Power - Max [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Package / Case	Rds On (Max) @ Id, Vgs
IXYS VMK90-02T2	2 N-Channel (Dual)	4 V	Chassis Mount	15000 pF	MOSFET (Metal Oxide)	380 W	450 nC	TO-240AA	150 °C	-40 °C	200 V	83 A	TO-240AA	25 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mosfet Array 200V 83A 380W Chassis Mount TO-240AA
