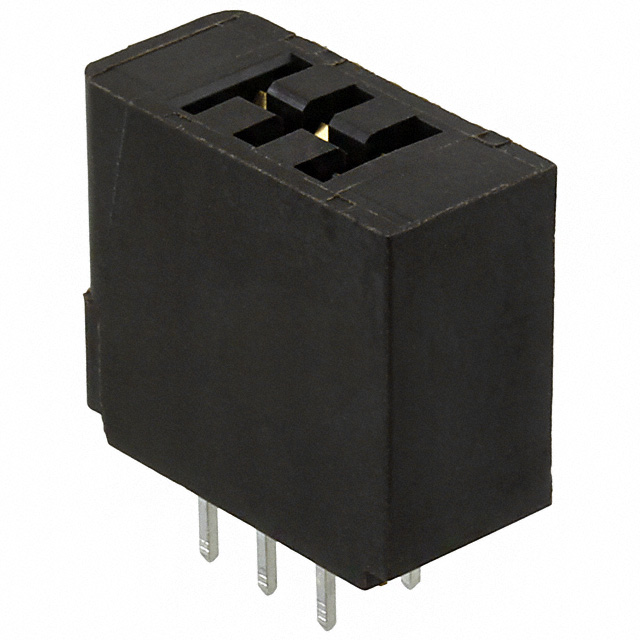

TCC03DKSN-S1713
ActiveSullins Connector Solutions
CONN TRANSIST TO-262 3POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCC03DKSN-S1713
ActiveSullins Connector Solutions
CONN TRANSIST TO-262 3POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCC03DKSN-S1713 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 30 mOhm |
| Current Rating (Amps) | 3 A |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 3 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -50 °C |
| Pitch - Mating | 3.81 mm |
| Pitch - Mating | 0.15 in |
| Pitch - Post | 0.15 in |
| Pitch - Post | 3.81 mm |
| Termination | Solder |
| Type | Transistor, TO-262 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.24 | |
| 10 | $ 9.97 | |||
| 30 | $ 9.58 | |||
| 40 | $ 9.20 | |||
| 80 | $ 8.69 | |||
| 230 | $ 7.92 | |||
| 440 | $ 7.41 | |||
| 950 | $ 6.80 | |||
Description
General part information
TCC03 Series
3 (Rectangular) Pos Transistor, TO-262 Socket Gold Through Hole
