0395220006

Active

Molex

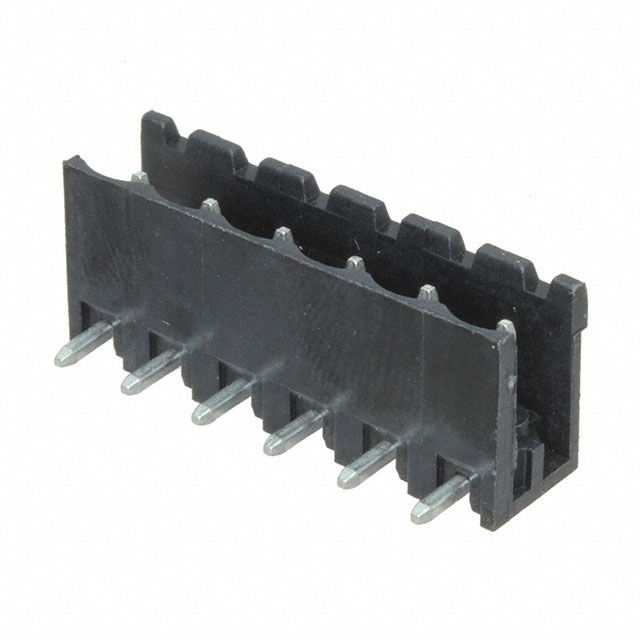

CONN SHROUDED HEADER (2 SIDES) HDR 6 POS 5MM SOLDER RA THRU-HOLE EUROSTYLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0395220006

Active

Molex

CONN SHROUDED HEADER (2 SIDES) HDR 6 POS 5MM SOLDER RA THRU-HOLE EUROSTYLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395220006

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.15 in
Contact Tail Length	3.81 mm
Header Orientation	90°, Right Angle
Insulation Height	8.38 mm
Insulation Height	0.33 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	6
Termination Style	Solder
Type	Header, Male Pins, Shrouded (2 Side)
Voltage - UL	300 V

039522 Series

Part	Voltage - UL	Mounting Type	Positions Per Level	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Contact Material	Number of Positions	Material Flammability Rating	Header Orientation	Type	Color	Termination Style	Number of Levels	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Number of Positions
Molex 0395221021	300 V	Through Hole	21	5 mm	0.197 in	-40 °C	105 ░C	Tin	Brass	21	UL94 V-0	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	1	8.38 mm	0.33 in	0.15 in	3.81 mm
Molex 0395221014	300 V	Through Hole	14	5 mm	0.197 in	-40 °C	105 ░C	Tin	Brass	14	UL94 V-0	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	1	8.38 mm	0.33 in	0.15 in	3.81 mm
Molex 0395225012	300 V	Through Hole	12	5 mm	0.197 in	-40 °C	105 ░C	Tin	Brass	12	UL94 V-0	90° Right Angle	Header Male Pins Shrouded (2 Side)	Green	Solder	1	8.38 mm	0.33 in	0.15 in	3.81 mm
Molex 0395226010	300 V	Through Hole	10	5 mm	0.197 in	-40 °C	105 ░C	Tin	Brass	10	UL94 V-0	90° Right Angle	Header Male Pins Shrouded (4 Side)	Green	Solder	1	8.38 mm	0.33 in	0.15 in	3.81 mm
Molex 0395220006	300 V	Through Hole	6	5 mm	0.197 in	-40 °C	105 ░C	Tin	Brass	6	UL94 V-0	90° Right Angle	Header Male Pins Shrouded (2 Side)	Black	Solder	1	8.38 mm	0.33 in	0.15 in	3.81 mm
Molex 0395220016	300 V	Through Hole	16	5 mm	0.197 in	-40 °C	105 ░C	Tin	Brass		UL94 V-0	90° Right Angle	Header Male Pins Shrouded (2 Side)	Black	Solder	1	8.38 mm	0.33 in	0.15 in	3.81 mm	16
Molex 0395226006	300 V	Through Hole	6	5 mm	0.197 in	-40 °C	105 ░C	Tin	Brass	6	UL94 V-0	90° Right Angle	Header Male Pins Shrouded (4 Side)	Green	Solder	1	8.38 mm	0.33 in	0.15 in	3.81 mm
Molex 0395226002	300 V	Through Hole	2	5 mm	0.197 in	-40 °C	105 ░C	Tin	Brass	2	UL94 V-0	90° Right Angle	Header Male Pins Shrouded (4 Side)	Green	Solder	1	8.38 mm	0.33 in	0.15 in	3.81 mm
Molex 0395224023	300 V	Through Hole	23	5 mm	0.197 in	-40 °C	140 °C	Tin	Brass	23	UL94 V-0	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	1	8.38 mm	0.33 in	0.17 in	4.32 mm
Molex 0395224005	300 V	Through Hole	5	5 mm	0.197 in	-40 °C	140 °C	Tin	Brass		UL94 V-0	90° Right Angle	Header Male Pins Shrouded (4 Side)	Black	Solder	1	8.38 mm	0.33 in	0.17 in	4.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.44
		10	$ 1.09
		25	$ 1.01
		50	$ 0.91
		100	$ 0.89
		480	$ 0.78

Description

General part information

039522 Series

6 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources
