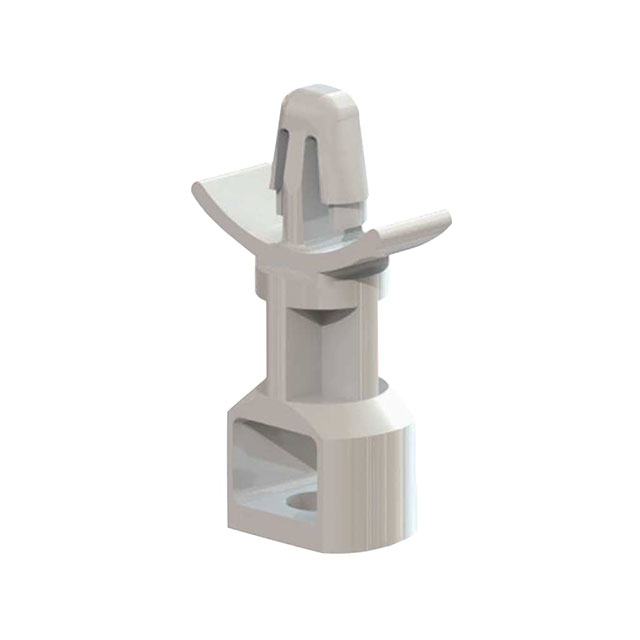

SRLAHS-16-01
ActiveEssentra Access Solutions
SN/RIV LOCKING ARROW SUPT 1"
Deep-Dive with AI
Search across all available documentation for this part.
SRLAHS-16-01
ActiveEssentra Access Solutions
SN/RIV LOCKING ARROW SUPT 1"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRLAHS-16-01 |
|---|---|
| Between Board Height | 1 in |
| Between Board Height | 25.4 mm |
| Features | Winged |
| Holding Type | Snap Lock |
| Length - Overall [x] | 1.331 in |
| Length - Overall [x] | 33.8 mm |
| Material | Nylon |
| Mounting Hole Diameter [Max] [diameter] | 4.1 mm |
| Mounting Hole Diameter [Max] [diameter] | 0.161 in |
| Mounting Hole Diameter [Min] [diameter] | 4 mm |
| Mounting Hole Diameter [Min] [diameter] | 0.157 in |
| Mounting Type | Snap Rivet |
| Support Hole Diameter [diameter] | 0.1875 " |
| Support Hole Diameter [diameter] | 4.75 mm |
| Support Hole Diameter [diameter] | 0.187 " |
| Support Panel Thickness [Max] | 1.98 mm |
| Support Panel Thickness [Max] | 0.078 " |
| Support Panel Thickness [Min] | 0.79 mm |
| Support Panel Thickness [Min] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.26 | |
Description
General part information
SRLAHS Series
Board Support Snap Lock / Snap Rivet Nylon 1.000" (25.40mm) 1"
Documents
Technical documentation and resources
No documents available
