231-69PABE-15V

Active

Wakefield-Vette

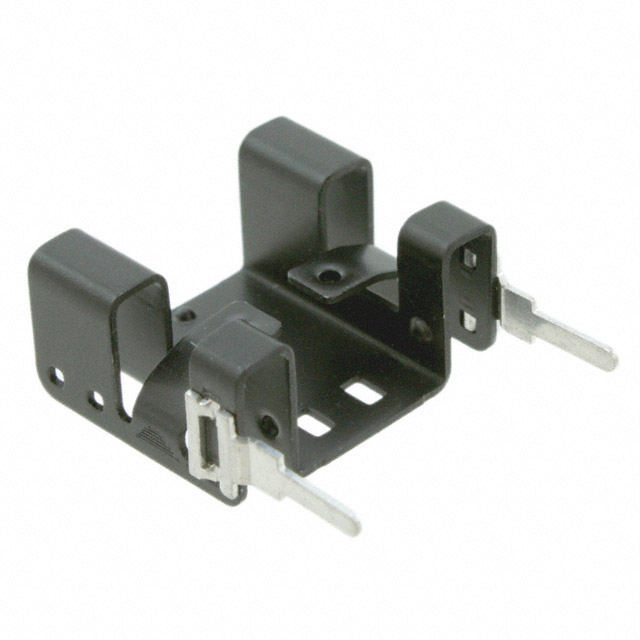

HEATSINK TO-220 VERT BLK

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK TO-220 VERT BLK

Technical Specifications

Parameters and characteristics for this part

Specification	231-69PABE-15V

Attachment Method	Board Mounts, Bolt On
Fin Height	0.4 "
Fin Height	10.16 mm
Length	17.53 mm
Length [x]	0.69 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	45 °C, 2 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	8 °C/W
Type	Board Level, Vertical
Width [y]	0.835 in
Width [y]	21.21 mm

Part	Material	Material Finish	Package Cooled	Shape	Fin Height	Fin Height	Thermal Resistance @ Forced Air Flow	Length [x]	Length	Width [y]	Width [y]	Type	Attachment Method	Power Dissipation @ Temperature Rise
Wakefield-Vette 231-69PABE-15V	Aluminum	Black Anodized	TO-220	Rectangular Fins	0.4 "	10.16 mm	8 °C/W	0.69 in	17.53 mm	0.835 in	21.21 mm	Board Level Vertical	Board Mounts Bolt On	2 W 45 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5000	$ 0.57

General part information

Heat Sink TO-220 Aluminum 2.0W @ 45°C Board Level, Vertical

Technical documentation and resources

No documents available
