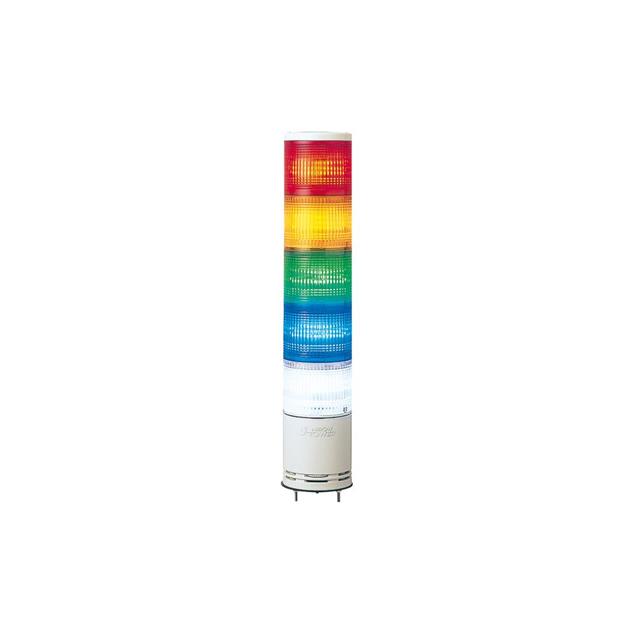

XVC1M5K

Active

SQUARE D BY SCHNEIDER ELECTRIC

SIGNAL TOWER, 5 TIERS, AMBER, BLUE, GREEN, RED, TRANSPARENT, CONTINUOUS, FLASHING, 100MM DIA.,240VAC

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SIGNAL TOWER, 5 TIERS, AMBER, BLUE, GREEN, RED, TRANSPARENT, CONTINUOUS, FLASHING, 100MM DIA.,240VAC

Technical Specifications

Parameters and characteristics for this part

Specification	XVC1M5K

Function - Lighting	Steady
Ingress Protection	IP54 - Dust Protected, Water Resistant
Light Color	Orange, Green, Blue, Red
Number of Stacks	4
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC
Weight	4 lbs
Weight	1814.4 g

Part	Number of Stacks	Voltage - Supply [Min]	Voltage - Supply [Max]	Function - Lighting	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Weight	Weight	Type	Light Color
SQUARE D BY SCHNEIDER ELECTRIC XVC1M5K	4	100 VAC	240 VAC	Steady	Wire Leads	50 °C	-30 ░C	IP54 - Dust Protected Water Resistant	4 lbs	1814.4 g	Complete Unit	Blue Green Orange Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stack Light Complete Unit Blue, Green, Orange, Red LED Wire Leads
