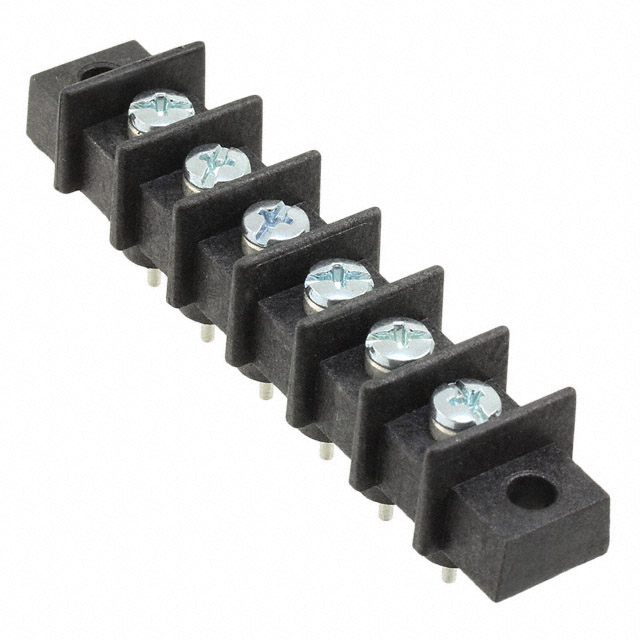

GFTPX-6

Active

Curtis Industries

CONN BARRIER STRIP 6CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GFTPX-6

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin, Insulated
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	6
Number of Rows	1
Number of Wire Entries	6
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

GFTPX Series

Part	Top Termination	Material Flammability Rating	Features	Mounting Type	Current Rating (Amps)	Bottom Termination	Terminal Block Type	Terminal Screw Material	Number of Wire Entries [custom]	Material - Insulation	Color	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Number of Rows	Barrier Type	Number of Wire Entries	Pitch [x]	Pitch [x]
Curtis Industries GFTPX-1	Screws	UL94 V-0	Flange	Chassis Panel	20 A	PC Pin Insulated	Barrier Block	Steel	1	Polyphenylene Oxide (PPO)	Black	110 °C	12 AWG	22 AWG	1	1	2 Wall (Dual)
Curtis Industries GFTPX-5	Screws	UL94 V-0	Flange	Chassis Panel	20 A	PC Pin Insulated	Barrier Block	Steel		Polyphenylene Oxide (PPO)	Black	110 °C	12 AWG	22 AWG	5	1	2 Wall (Dual)	5	11.12 mm	0.438 in
Curtis Industries GFTPX-21	Screws	UL94 V-0	Flange	Chassis Panel	20 A	PC Pin Insulated	Barrier Block	Steel		Polyphenylene Oxide (PPO)	Black	110 °C	12 AWG	22 AWG	21	1	2 Wall (Dual)	21	11.12 mm	0.438 in
Curtis Industries GFTPX-20	Screws	UL94 V-0	Flange	Chassis Panel	20 A	PC Pin Insulated	Barrier Block	Steel		Polyphenylene Oxide (PPO)	Black	110 °C	12 AWG	22 AWG	20	1	2 Wall (Dual)	20	11.12 mm	0.438 in
Curtis Industries GFTPX-24	Screws	UL94 V-0	Flange	Chassis Panel	20 A	PC Pin Insulated	Barrier Block	Steel		Polyphenylene Oxide (PPO)	Black	110 °C	12 AWG	22 AWG	24	1	2 Wall (Dual)		11.12 mm	0.438 in
Curtis Industries GFTPX-14	Screws	UL94 V-0	Flange	Chassis Panel	20 A	PC Pin Insulated	Barrier Block	Steel		Polyphenylene Oxide (PPO)	Black	110 °C	12 AWG	22 AWG	14	1	2 Wall (Dual)	14	11.12 mm	0.438 in
Curtis Industries GFTPX-23	Screws	UL94 V-0	Flange	Chassis Panel	20 A	PC Pin Insulated	Barrier Block	Steel	23	Polyphenylene Oxide (PPO)	Black	110 °C	12 AWG	22 AWG	23	1	2 Wall (Dual)		11.12 mm	0.438 in
Curtis Industries GFTPX-15	Screws	UL94 V-0	Flange	Chassis Panel	20 A	PC Pin Insulated	Barrier Block	Steel		Polyphenylene Oxide (PPO)	Black	110 °C	12 AWG	22 AWG	15	1	2 Wall (Dual)	15	11.12 mm	0.438 in
Curtis Industries GFTPX-6	Screws	UL94 V-0	Flange	Chassis Panel	20 A	PC Pin Insulated	Barrier Block	Steel		Polyphenylene Oxide (PPO)	Black	110 °C	12 AWG	22 AWG	6	1	2 Wall (Dual)	6	11.12 mm	0.438 in
Curtis Industries GFTPX-4	Screws	UL94 V-0	Flange	Chassis Panel	20 A	PC Pin Insulated	Barrier Block	Steel		Polyphenylene Oxide (PPO)	Black	110 °C	12 AWG	22 AWG	4	1	2 Wall (Dual)	4	11.12 mm	0.438 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.05
		10	$ 9.72
		25	$ 9.17
		50	$ 8.73
		100	$ 8.56
		250	$ 7.46
		500	$ 7.18
		1000	$ 6.91

Description

General part information

GFTPX Series

6 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
