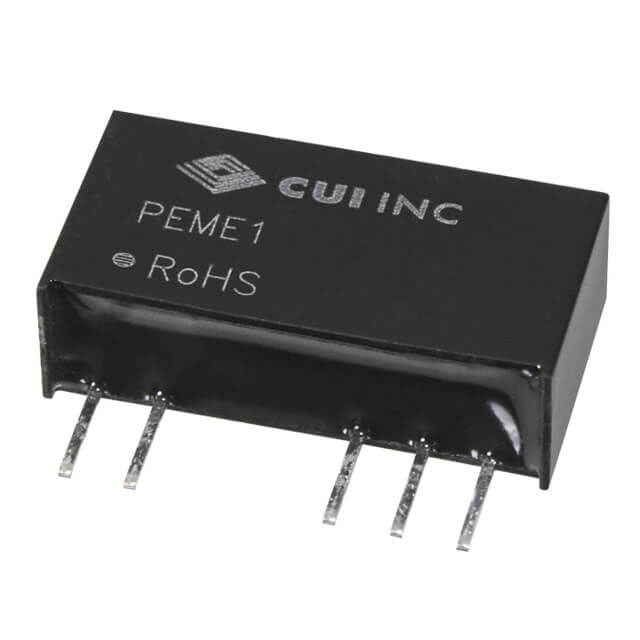

PEME1-S5-S9-S

CUI Inc.

DC DC CONVERTER 9V 1W

Deep-Dive with AI

Search across all available documentation for this part.

PEME1-S5-S9-S

CUI Inc.

DC DC CONVERTER 9V 1W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEME1-S5-S9-S

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Efficiency	83 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 4 Leads
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.7 mm
Size / Dimension [y]	0.24 "
Size / Dimension [y]	6 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Standard Number	62368-1, 55024, 55032 Class A
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	3000 V
Voltage - Output 1	9 V

PEME1 Series

Part	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Applications	Package / Case	Features	Voltage - Input (Min) [Min]	Mounting Type	Standard Number	Type	Efficiency	Number of Outputs	Voltage - Isolation	Voltage - Output 1	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Min]
CUI Inc. PEME1-S5-D15-S	5.5 V	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	ITE (Commercial)	7-SIP Module 5 Leads	SCP	4.5 V	Through Hole	55024 55032 Class A 62368-1	Isolated Module	83 %	2	3000 V	15 V	-15 V	-40 °C	105 C	CB Scheme EN IEC UL	34 mA
CUI Inc. PEME1-S5-D9-S	5.5 V	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	ITE (Commercial)	7-SIP Module 5 Leads	SCP	4.5 V	Through Hole	55024 55032 Class A 62368-1	Isolated Module	83 %	2	3000 V	9 V	-9 V	-40 °C	105 C	CB Scheme EN IEC UL
CUI Inc. PEME1-S5-D24-S	5.5 V	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	ITE (Commercial)	7-SIP Module 5 Leads	SCP	4.5 V	Through Hole	55024 55032 Class A 62368-1	Isolated Module	85 %	2	3000 V	24 V	-24 V	-40 °C	105 C	CB Scheme EN IEC UL		21 mA	21 mA
CUI Inc. PEME1-S5-S3-S	5.5 V	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	ITE (Commercial)	7-SIP Module 4 Leads	SCP	4.5 V	Through Hole	55024 55032 Class A 62368-1	Isolated Module	74 %	1	3000 V	3.3 V		-40 °C	105 C	CB Scheme EN IEC UL		303 mA
CUI Inc. PEME1-S5-S9-S	5.5 V	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	ITE (Commercial)	7-SIP Module 4 Leads	SCP	4.5 V	Through Hole	55024 55032 Class A 62368-1	Isolated Module	83 %	1	3000 V	9 V		-40 °C	105 C	CB Scheme EN IEC UL
CUI Inc. PEME1-S5-S5-S	5.5 V	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	ITE (Commercial)	7-SIP Module 4 Leads	SCP	4.5 V	Through Hole	55024 55032 Class A 62368-1	Isolated Module		1	3000 V	5 V		-40 °C	105 C	CB Scheme EN IEC UL		200 mA
CUI Inc. PEME1-S5-S24-S	5.5 V	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	ITE (Commercial)	7-SIP Module 4 Leads	SCP	4.5 V	Through Hole	55024 55032 Class A 62368-1	Isolated Module	85 %	1	3000 V	24 V		-40 °C	105 C	CB Scheme EN IEC UL		42 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.71
		5	$ 2.56

Description

General part information

PEME1 Series

Isolated Module DC DC Converter 1 Output 9V 111mA 4.5V - 5.5V Input

Documents

Technical documentation and resources

No documents available
