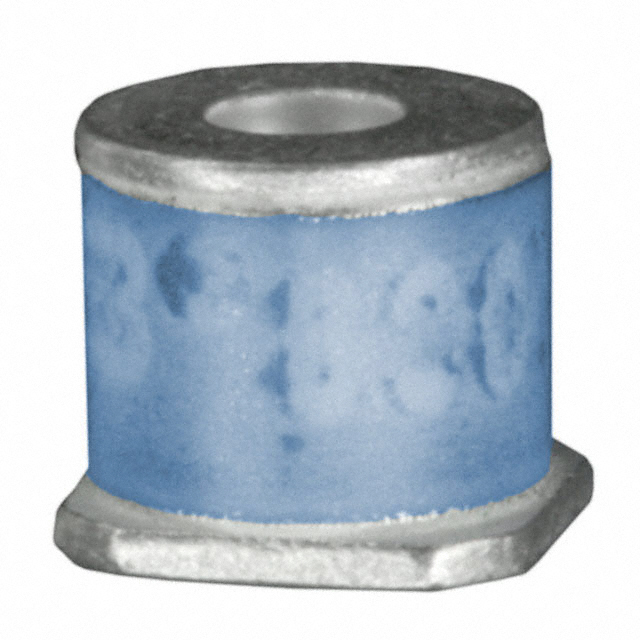

2039-80-SMLF

Active

Bourns Inc.

2.5KA ±20% 800V 2 SMD GAS DISCHARGE TUBE ARRESTERS (GDT) ROHS

Search across all available documentation for this part.

Active

Bourns Inc.

2.5KA ±20% 800V 2 SMD GAS DISCHARGE TUBE ARRESTERS (GDT) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	2039-80-SMLF

Fail Short	False
Impulse Discharge Current (8/20µs)	2.5 kA
Impulse Discharge Current (8/20µs)	2500 A
Mounting Type	Surface Mount
Number of Poles	2
Package / Case	2-SMD Cylinder Square End
Tolerance	20 %
Voltage - DC Spark Over (Nom)	800 V

Part	Number of Poles	Package / Case	Voltage - DC Spark Over (Nom)	Tolerance	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Mounting Type
Bourns Inc. 2039-110-BT1LF	2	Axial Cylinder	1100 V	20 %	2.5 kA	2500 A	Through Hole
Bourns Inc. 2039-110-SMLF	2	2-SMD Cylinder Square End	1100 V	20 %	2.5 kA	2500 A	Surface Mount
Bourns Inc. 2039-80-SMLF	2	2-SMD Cylinder Square End	800 V	20 %	2.5 kA	2500 A	Surface Mount
Bourns Inc. 2039-110-B5LF	2	Axial Cylinder Radial Bend	1100 V	20 %	2.5 kA	2500 A	Through Hole
Bourns Inc. 2039-80-B5LF	2	Axial Cylinder Radial Bend	800 V	20 %	2.5 kA	2500 A	Through Hole
Bourns Inc. 2039-80-SM-RPLF	2	2-SMD Cylinder Square End	800 V	20 %	2.5 kA	2500 A	Surface Mount
Bourns Inc. 2039-80-BLF	2	Axial Cylinder	800 V	20 %	2.5 kA	2500 A	Through Hole
Bourns Inc. 2039-110-BLF	2	Axial Cylinder	1100 V	20 %	2.5 kA	2500 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gas Discharge Tube 800 V 2500A (2.5kA) ±20% 2 Pole Surface Mount
