CCA14S/90

Active

Vector Electronics

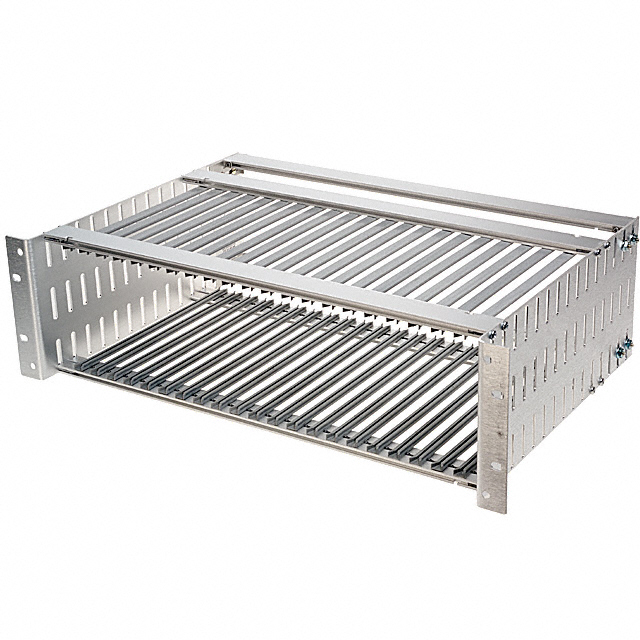

CARD RACK ALUM 12X19 SNAP-IN

Search across all available documentation for this part.

Active

Vector Electronics

CARD RACK ALUM 12X19 SNAP-IN

Technical Specifications

Parameters and characteristics for this part

Specification	CCA14S/90

Card Size Range [Max] [z]	114.3 mm
Card Size Range [Max] [z]	4.5 in
Card Size Range [Min] [z]	63.5 mm
Card Size Range [Min] [z]	2.5 in
Card Size Range [x]	243.84 mm
Card Size Range [x]	9.6 in
Guide Method	Card Guide
Height [z]	133.35 mm
Height [z]	5.25 in
Material	Aluminum
Size / Dimension [x]	12 in
Size / Dimension [x]	304.8 mm
Size / Dimension [y]	482.6 mm
Size / Dimension [y]	19 in
Type	Assembled Subracks with Card Guides

Part	Type	Material	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Card Size Range [x]	Card Size Range [Min] [z]	Card Size Range [Max] [z]	Card Size Range [x]	Card Size Range [Min] [z]	Card Size Range [Max] [z]	Guide Method
Vector Electronics CCA14S/90	Assembled Subracks with Card Guides	Aluminum	133.35 mm	5.25 in	12 in	304.8 mm	482.6 mm	19 in	243.84 mm	63.5 mm	114.3 mm	9.6 in	2.5 in	4.5 in	Card Guide
Vector Electronics CCA14S-H/90	Assembled Subracks with Card Guides	Aluminum	133.35 mm	5.25 in	12 in	304.8 mm	260.35 mm	10.25 in	243.84 mm	63.5 mm	114.3 mm	9.6 in	2.5 in	4.5 in	Card Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Aluminum Assembled Subracks with Card Guides 3U = 5.250" (133.35mm)
