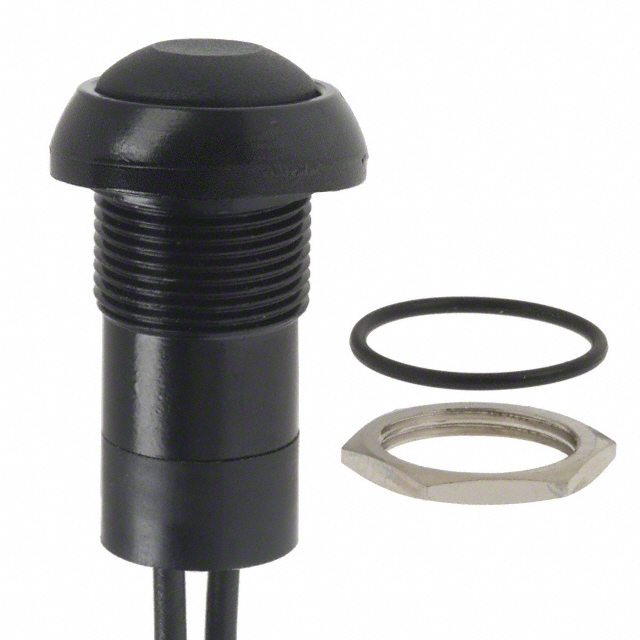

IPR1FAD2

Active

APEM

SWITCH PUSHBUTTON SPST 4A 12V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSHBUTTON SPST 4A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	IPR1FAD2

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	4 A, 2 A
Electrical Life	200000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-On
Termination Style	Wire Leads
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

Part	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Actuator Type	Type	Panel Cutout Dimensions [diameter]	Mounting Type	Termination Style	Electrical Life	Features	Ingress Protection	Color - Actuator/Cap	Actuator Marking	Voltage Rating - DC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]
APEM IPR1FAD2	2 A 4 A	125 V	Off-On	Button Round	Standard	13.6 mm	Panel Mount Front	Wire Leads	200000 Cycles	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	Black	No Marking	12 V	SPST	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Standard Panel Mount, Front
