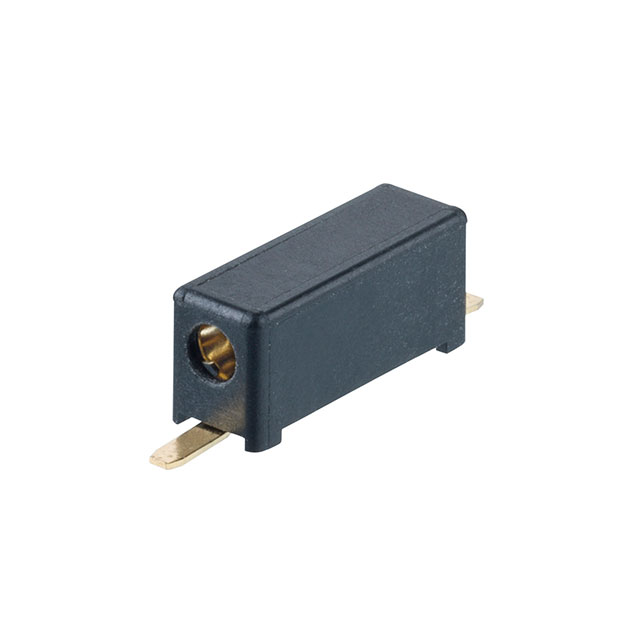

M3497-98
ObsoleteHarwin Inc.
SMT HORIZONTAL TEST RECEPTACLE FOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M3497-98
ObsoleteHarwin Inc.
SMT HORIZONTAL TEST RECEPTACLE FOR ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3497-98 |
|---|---|
| Body Material | Nylon, Polyamide (PA) |
| Color | Black |
| Contact Finish | Gold |
| Contact Material | Phosphorus Bronze |
| Gender | Female |
| Insulation | Fully Insulated |
| Mounting Type | Surface Mount Horizontal |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Plug/Mating Plug Diameter | Standard Tip |
| Termination | Solder |
| Type | Tip Jack |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 100 | $ 3.52 | |
| 250 | $ 3.25 | |||
| 500 | $ 3.00 | |||
| 1000 | $ 2.75 | |||
| 2500 | $ 2.48 | |||
Description
General part information
M3497 Series
Tip Jack Connector Standard Tip Solder Black
