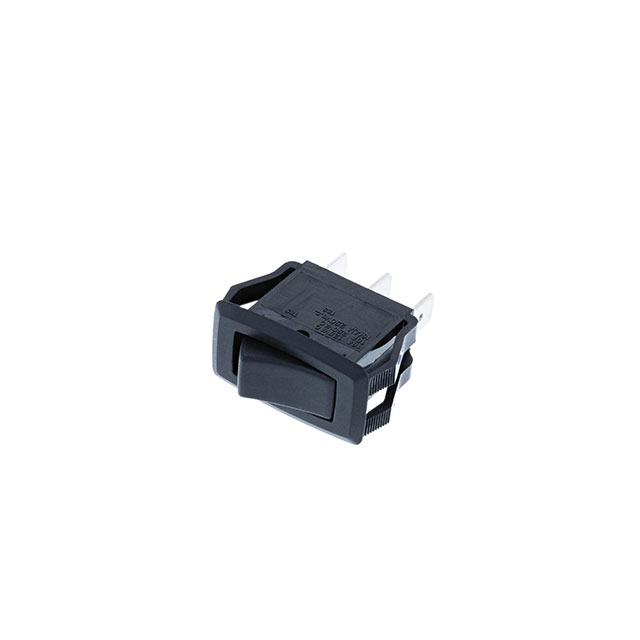

RG1-1F-DC-1-B
ActiveSwitch Components
ROCKER; SP3T; POS: 3; ON-OFF-ON; 10A/24VDC; BLACK; NONE; RG; UL94V-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RG1-1F-DC-1-B
ActiveSwitch Components
ROCKER; SP3T; POS: 3; ON-OFF-ON; 10A/24VDC; BLACK; NONE; RG; UL94V-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RG1-1F-DC-1-B |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, cURus, ENEC |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A, 20 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 27.6 mm |
| Panel Cutout Dimensions [y] | 13.8 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RG1-1F Series
Rocker Switch SPDT 20 (AC), 16 (DC) 125 V Panel Mount, Snap-In
