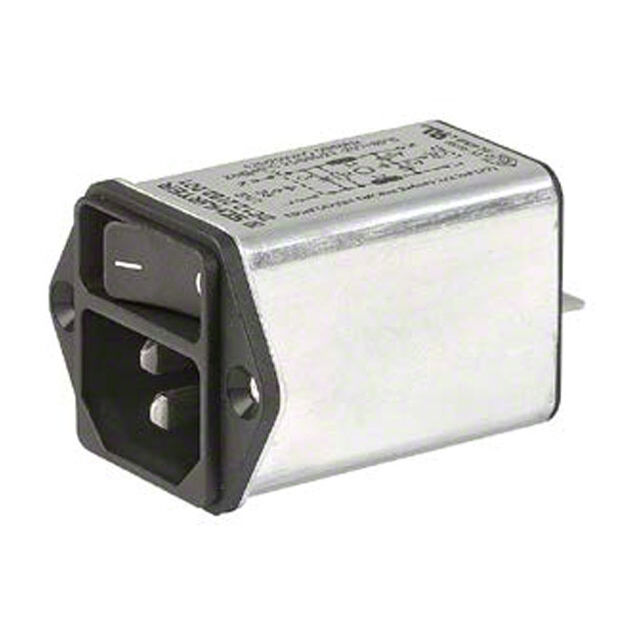

DC12.2202.031

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C18 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C18 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DC12.2202.031

Accomodates a Fuse	False
Approval Agency	CQC, ENEC, cULus
Connector Style	IEC 320-C18
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	2 A
Features	V-Lock Notch, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Number of Positions	2
Panel Cutout Dimensions [x]	29.1 mm
Panel Cutout Dimensions [y]	33.1 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Material Flammability Rating	Ingress Protection	Current Rating - Appliance Inlet	Number of Positions	Connector Style	Switch Features	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Current Rating - Filter	Termination	Termination	Termination	Connector Type	Voltage Rating - Appliance Inlet	Features	Accomodates a Fuse
SCHURTER Inc. DC12.2202.031	Filtered (EMI RFI) - Commercial Medical	UL94 V-0	IP40	10 A	2	IEC 320-C18	Switch On-Off	Flange Panel Mount	33.1 mm	29.1 mm	CQC cULus ENEC	2 A	0.25 in	6.3 mm	Quick Connect	Receptacle Male Blades - Module	250 VAC	Shielded V-Lock Notch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C18 Panel Mount, Flange
