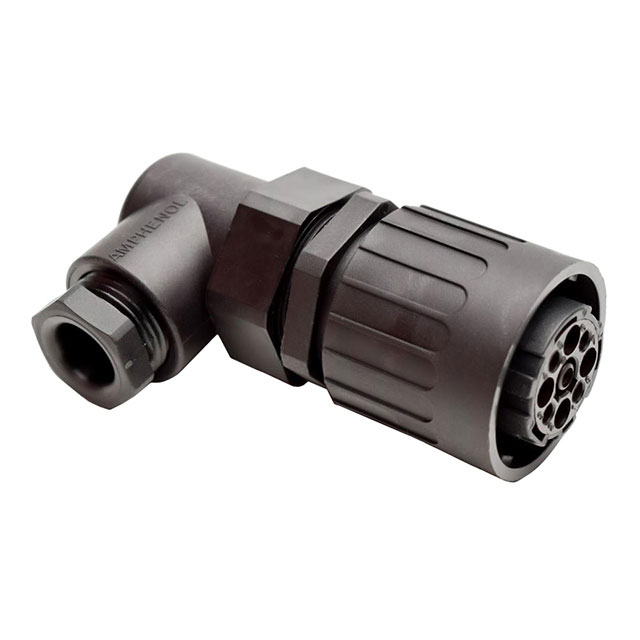

C01610F0080021

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 9PS INLINE RA

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 9PS INLINE RA

Technical Specifications

Parameters and characteristics for this part

Specification	C01610F0080021

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	9, 8
Number of Positions [custom]	PE
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Female Sockets

Part	Ingress Protection	Number of Positions	Number of Positions [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Note	Shielding	Features	Shell Material	Fastening Type	Contact Type	Contact Shape	Connector Type	Contact Size	Mounting Type	Orientation	Type	Shell Size - Insert	Material Flammability Rating
Amphenol Tuchel Industrial C01610F0080021	IP65 - Dust Tight Water Resistant	8 9	PE	125 °C	-40 °C	Black	Contacts Not Included	Unshielded	Backshell Coupling Nut	Polyamide (PA66) Nylon 6/6	Bayonet Lock	Crimp	Circular	Plug Housing	1.6 mm	Free Hanging (In-Line) Right Angle	N	For Female Sockets	1	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 32.98

General part information

9 (8 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut
