SN49B12B

Active

Switchcraft Inc.

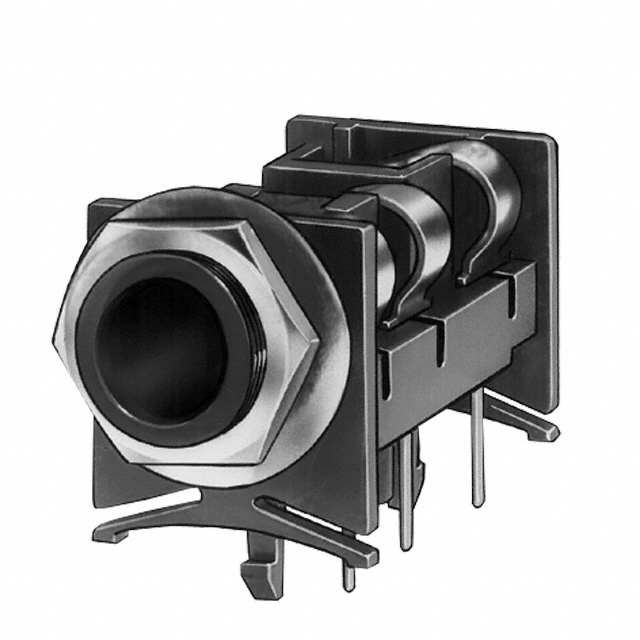

CONN 1/4" PHONE JACK F 3 POS 7.62MM SOLDER RA THRU-HOLE 6 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN 1/4" PHONE JACK F 3 POS 7.62MM SOLDER RA THRU-HOLE 6 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	SN49B12B

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Black
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Features	Thread Lock, Mounting Hardware
Gender	Female
Housing Material	Thermoplastic
Includes	Connector, Washer, Nut
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Thread Size	3/8"-32

Part	Termination	Contact Material	Includes	Shielding	Thread Size	Gender	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Connector Type	Body Color	Signal Lines	Actual Diameter [diameter]	Actual Diameter [diameter]	Mounting Type	Housing Material	Internal Switch(s)	Contact Material - Plating [custom]	Features
Switchcraft Inc. SN49B12B	Solder	Brass	Connector Nut Washer	Unshielded	3/8"-32	Female	3	3	Phone Jack	Black	Stereo	0.25 in	6.35 mm	Through Hole Right Angle	Thermoplastic		Nickel	Mounting Hardware Thread Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
