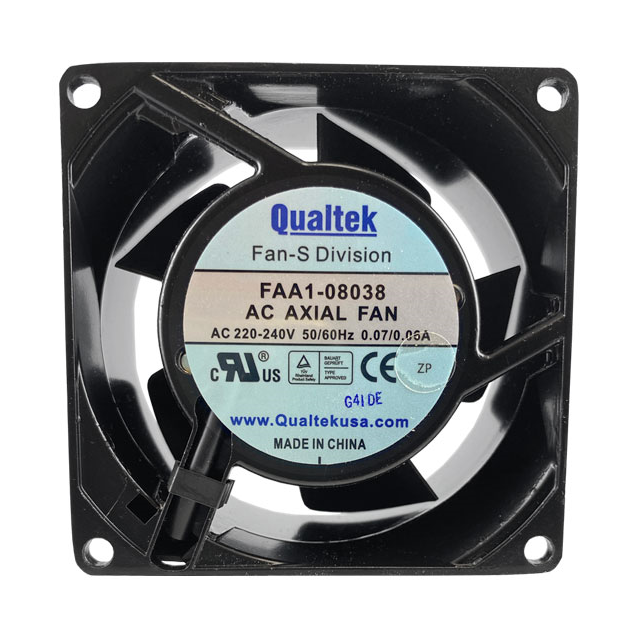

FAA1-08038NBHT31
ActiveQualtek
FAN AXIAL 80X38MM 115VAC TERM
Deep-Dive with AI
Search across all available documentation for this part.
FAA1-08038NBHT31
ActiveQualtek
FAN AXIAL 80X38MM 115VAC TERM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FAA1-08038NBHT31 |
|---|---|
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 100 mA |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 31.6 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 8.5 W |
| RPM | 2800 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 0.166 in H2O |
| Static Pressure | 41.3 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 320.24 g |
| Weight | 0.706 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.59 | |
| 10 | $ 14.79 | |||
| 25 | $ 14.13 | |||
| 50 | $ 14.01 | |||
Description
General part information
FAA1-08038 Series
Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Ball 29.6 CFM (0.829mł/min) 2 Terminals
