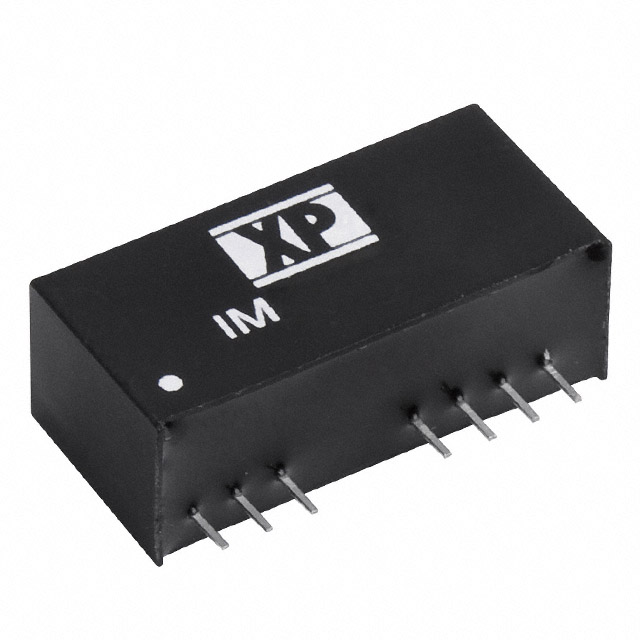

IM4812S
ActiveXP POWER
DC DC CONVERTER +/-12V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IM4812S
ActiveXP POWER
DC DC CONVERTER +/-12V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IM4812S |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 85 mA |
| Efficiency | 81 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-SIP Module, 7 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 26 mm |
| Size / Dimension [x] | 1.02 in |
| Size / Dimension [y] | 9.2 mm |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [z] | 0.49 in |
| Size / Dimension [z] | 12.5 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 15.90 | |
| 5 | $ 15.42 | |||
| 10 | $ 14.95 | |||
| 25 | $ 14.31 | |||
| 100 | $ 13.36 | |||
Description
General part information
IM4812 Series
Isolated Module DC DC Converter 2 Output 12V -12V 85mA 18V - 75V Input
