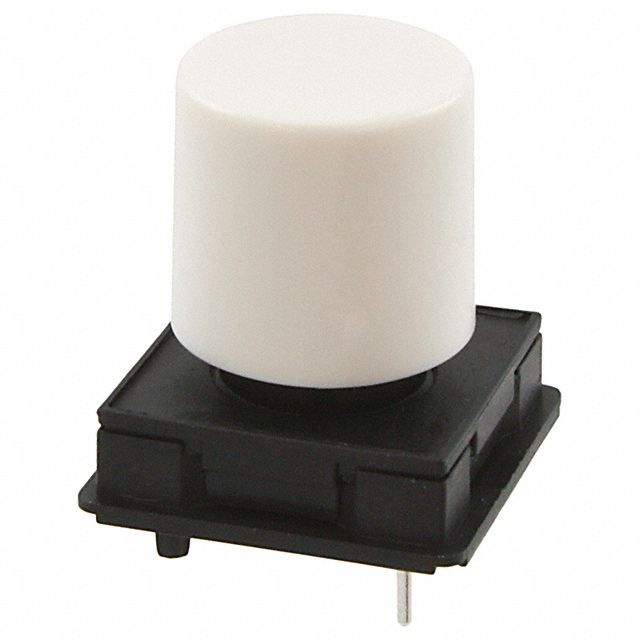

1241.1082.8

Active

SCHURTER Inc.

NOT AVAILABLE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

SCHURTER Inc.

NOT AVAILABLE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	1241.1082.8

Actuator Height off PCB, Vertical [z]	13.75 mm
Actuator Material	Polycarbonate (PC)
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.125 A, 48 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	0.25 kgf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Outline [x]	12.65 mm
Outline [y]	12.65 mm
Switch Function	Off-Mom
Switch Travel	0.45 mm
Termination Style	PC Pin

Part	Outline [y]	Outline [x]	Termination Style	Mounting Type	Circuit	Mechanical Life	Actuator Orientation	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Contact Rating @ Voltage	Ingress Protection	Features	Actuator Type	Switch Function	Actuator Material	Switch Travel	Actuator Height off PCB, Vertical [z]	Actuator Height off PCB, Vertical
SCHURTER Inc. 1241.1082.2	12.65 mm	12.65 mm	PC Pin	Through Hole	SPST-NO	1000000 Cycles	Top Actuated	Non-Illuminated	-25 °C	85 °C	0.25 kgf	0.125 A 48 VDC	IP40	Tactile Feedback	Round Button	Off-Mom	Polycarbonate (PC)	0.45 mm	9.25 mm
SCHURTER Inc. 1241.1082.8	12.65 mm	12.65 mm	PC Pin	Through Hole	SPST-NO	1000000 Cycles	Top Actuated	Non-Illuminated	-25 °C	85 °C	0.25 kgf	0.125 A 48 VDC	IP40	Tactile Feedback	Round Button	Off-Mom	Polycarbonate (PC)	0.45 mm	13.75 mm
SCHURTER Inc. 1241.1082.5	12.65 mm	12.65 mm	PC Pin	Through Hole	SPST-NO	1000000 Cycles	Top Actuated	Non-Illuminated	-25 °C	85 °C	0.25 kgf	0.125 A 48 VDC	IP40	Tactile Feedback	Round Button	Off-Mom	Polycarbonate (PC)	0.45 mm	11.5 mm
SCHURTER Inc. 1241.1082.42
SCHURTER Inc. 1241.1082.6	12.65 mm	12.65 mm	PC Pin	Through Hole	SPST-NO	1000000 Cycles	Top Actuated	Non-Illuminated	-25 °C	85 °C	0.25 kgf	0.125 A 48 VDC	IP40	Tactile Feedback	Round Button	Off-Mom	Polycarbonate (PC)	0.45 mm		12.25 mm
SCHURTER Inc. 1241.1082.7	12.65 mm	12.65 mm	PC Pin	Through Hole	SPST-NO	1000000 Cycles	Top Actuated	Non-Illuminated	-25 °C	85 °C	0.25 kgf	0.125 A 48 VDC	IP40	Tactile Feedback	Round Button	Off-Mom	Polycarbonate (PC)	0.45 mm	13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
