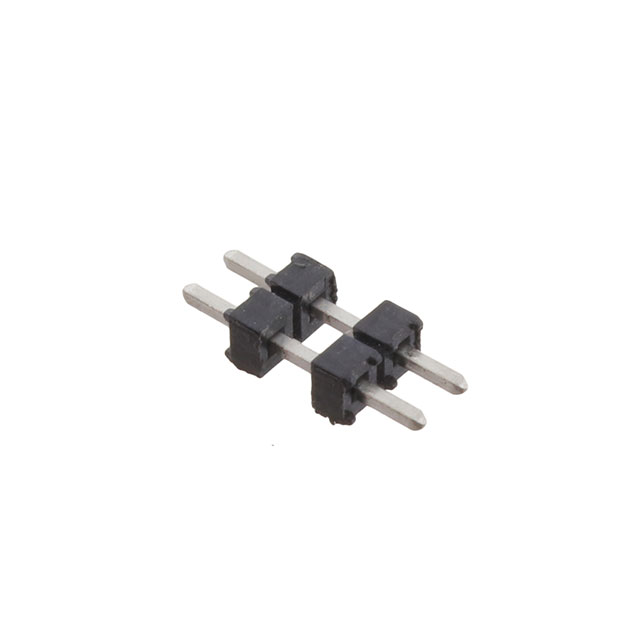

TW-50-08-T-D-700-075

Active

Samtec Inc.

CONN BRD STACK 2.00 100POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TW-50-08-T-D-700-075

Active

Samtec Inc.

CONN BRD STACK 2.00 100POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TW-50-08-T-D-700-075

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin	0.831 in
Length - Overall Pin	21.107 mm
Length - Post (Mating) [x]	0.056 in
Length - Post (Mating) [x]	1.422 mm
Length - Stack Height [x]	0.7 in
Length - Stack Height [x]	17.78 mm
Length - Tail	1.905 mm
Length - Tail	0.075 in
Mounting Type	Through Hole
Number of Positions	100
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Termination	Solder

TW-50-08 Series

Part	Length - Stack Height [x]	Length - Stack Height [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Length - Overall Pin	Length - Overall Pin	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Mounting Type	Color	Termination	Number of Positions	Row Spacing	Row Spacing	Length - Tail	Length - Tail	Length - Tail [custom]	Length - Tail [custom]
Samtec Inc. TW-50-08-G-D-530-100	0.53 in	13.45 mm	5.1 mm	0.201 in	2	0.51 Ám	20 Áin	0.079 in	2 mm	0.831 in	21.107 mm	0.1 "	2.54 mm	Gold	Through Hole	Black	Solder	100	2 mm	0.079 in
Samtec Inc. TW-50-08-G-S-250-290	0.25 in	6.35 mm	7.391 mm	0.291 in	1	0.51 Ám	20 Áin	0.079 in	2 mm	0.831 in	21.107 mm	0.29 in	7.366 mm	Gold	Through Hole	Black	Solder	50
Samtec Inc. TW-50-08-T-D-700-075	0.7 in	17.78 mm	1.422 mm	0.056 in	2			0.079 in	2 mm	0.831 in	21.107 mm			Tin	Through Hole	Black	Solder	100	2 mm	0.079 in	1.905 mm	0.075 in
Samtec Inc. TW-50-08-T-S-500-150	0.5 in	12.7 mm	4.597 mm	0.181 in	1			0.079 in	2 mm	0.831 in	21.107 mm			Tin	Through Hole	Black	Solder	50					0.15 in	3.81 mm
Samtec Inc. TW-50-08-G-D-490-170	0.49 in	12.45 mm	4.343 mm	0.171 in	2	0.51 Ám	20 Áin	0.079 in	2 mm	0.831 in	21.107 mm			Gold	Through Hole	Black	Solder	100	2 mm	0.079 in	4.318 mm	0.17 in
Samtec Inc. TW-50-08-G-S-205-150	0.205 in	5.207 mm	12.09 mm	0.476 in	1	0.51 Ám	20 Áin	0.079 in	2 mm	0.831 in	21.107 mm			Gold	Through Hole	Black	Solder	50					0.15 in	3.81 mm
Samtec Inc. TW-50-08-T-D-580-110	0.58 in	14.732 mm			2			0.079 in	2 mm	0.831 in	21.107 mm	0.11 in	2.794 mm	Tin	Through Hole	Black	Solder	100	2 mm	0.079 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.50

Description

General part information

TW-50-08 Series

100 Position Header Spacer Connector 0.079" (2.00mm) Tin Through Hole
