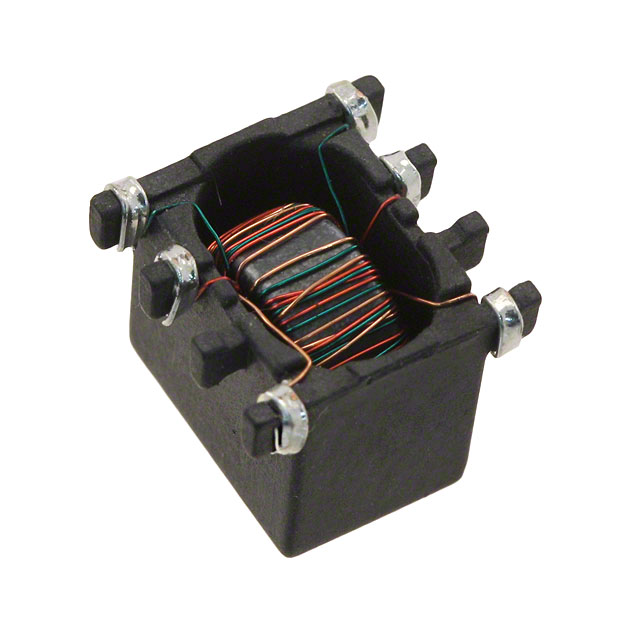

HM42-40004LFTR

Unknown

TT Electronics/BI Magnetics

PULSE XFMR 2:1:1 1.2MH

Search across all available documentation for this part.

Unknown

TT Electronics/BI Magnetics

PULSE XFMR 2:1:1 1.2MH

Technical Specifications

Parameters and characteristics for this part

Specification	HM42-40004LFTR

ET (Volt-Time)	45.4 VµS
Height - Seated (Max) [Max]	0.307 in
Height - Seated (Max) [Max]	7.8 mm
Inductance	1.2 mH
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	9.2 mm
Size / Dimension [x]	0.362 in
Size / Dimension [y]	0.346 in
Size / Dimension [y]	8.8 mm
Transformer Type	Gate Drive
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	2 CT
Turns Ratio - Primary:Secondary [custom]	1

Part	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	ET (Volt-Time)	Transformer Type	Turns Ratio - Primary:Secondary [custom]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TT Electronics/BI Magnetics HM42-40004LFTR	1.2 mH	125 °C	-40 °C	0.307 in	7.8 mm	1	2 CT	1	Surface Mount	9.2 mm	0.362 in	0.346 in	8.8 mm	45.4 VµS	Gate Drive
TT Electronics/BI Magnetics HM42-30001LFTR	980 µH	125 °C	-40 °C			1	1		Surface Mount	8.64 mm	0.34 "	0.46 "		30.2 VµS	Gate Drive	1	11.68 mm	4.1 mm	0.161 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.2mH Gate Drive Pulse Transformer 2:1:1 Surface Mount
