TR9LS1111T00CIMR6B

Active

GlobTek, Inc.

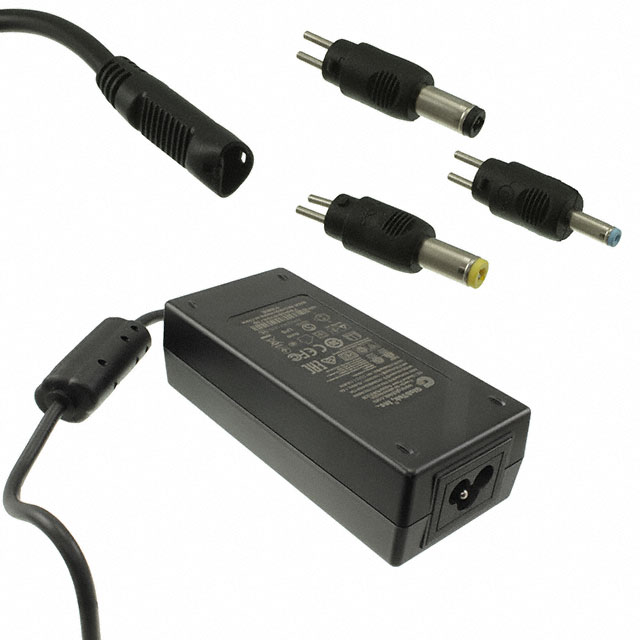

AC/DC DESKTOP ADAPTER 54V 60W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 54V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9LS1111T00CIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.111 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C6
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	54 V

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Efficiency	Cord Length	Cord Length	Input Connector	Input Type	Region Utilized	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Output Connector	Voltage - Output	Approval Agency	Power (Watts)	Form	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]
GlobTek, Inc. TR9LS1111T00CIMR6B	Household Appliances ITE (Commercial) Medical	-20 C	40 °C	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	1.5 m	59 in	IEC 320-C6	Cord	International	1.111 A	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	1.3mm x 3.5mm Barrel Plug Kit	54 V	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	60 W	Desktop (Class I)	150 mW	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.05

General part information

54V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
