GW P9LR34.EM-M1M6-XX55-1-45-R18

Active

ams-OSRAM USA INC.

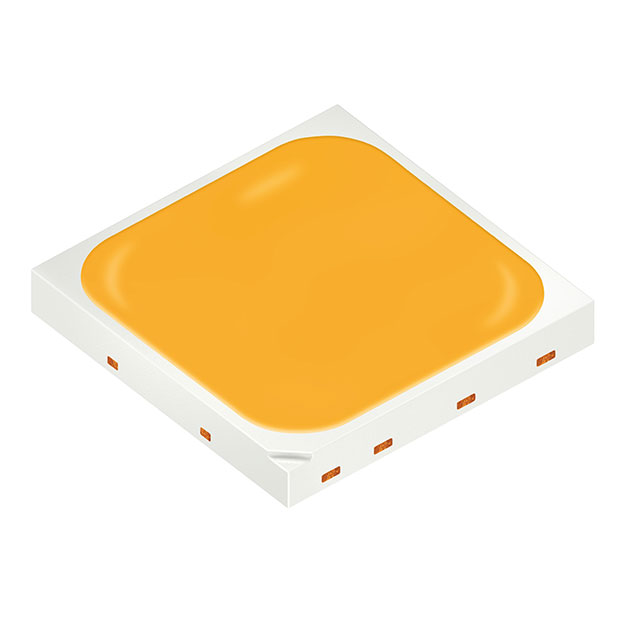

LED DURIS S8 NEUT WHT 4000K SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GW P9LR34.EM-M1M6-XX55-1-45-R18

Active

ams-OSRAM USA INC.

LED DURIS S8 NEUT WHT 4000K SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GW P9LR34.EM-M1M6-XX55-1-45-R18

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	80
Current - Max [Max]	200 mA
Current - Test	45 mA
Flux @ 25°C, Current - Test	210 lm
Flux @ 25°C, Current - Test [Max]	240 lm
Flux @ 25°C, Current - Test [Min]	180 lm
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Lumens/Watt @ Current - Test	210 lm/W
Mounting Type	Surface Mount
Package / Case	2020
Package / Case	5050 Metric
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	1.6 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	22.2 V

GWP9LR34 Series

Part	Current - Test	Package / Case	Package / Case	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Color	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test	Mounting Type	Current - Max [Max]	Viewing Angle	Thermal Resistance of Package [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]
ams-OSRAM USA INC. GW P9LR34.PM-M3M4-XX52-1-45-R18	45 mA	2020	5050 Metric	5700 K	0.197 in	5 mm	0.197 "	5 mm	70	SMD	22.2 V	Cool White	210 lm/W	210 lm	Surface Mount	200 mA	120 °	1.5 °C/W	0.8 mm	0.031 "
ams-OSRAM USA INC. GW P9LR34.EM-L9M6-XX57-1-45-R18	45 mA	2020	5050 Metric		0.197 in	5 mm	0.197 "	5 mm	80	SMD	22.2 V	Warm White	205 lm/W	205 lm 240	Surface Mount	200 mA	120 °	1.6 °C/W	0.8 mm	0.031 "	170 lm
ams-OSRAM USA INC. GW P9LR34.PM-M2M3-XX57-1-45-R18	45 mA	2020	5050 Metric		0.197 in	5 mm	0.197 "	5 mm	70	SMD	22.2 V	Warm White	200 lm/W		Surface Mount	200 mA	120 °	1.5 °C/W	0.8 mm	0.031 "
ams-OSRAM USA INC. GW P9LR34.PM-M3M4-XX55-1-45-R18	45 mA	2020	5050 Metric	4000 K	0.197 in	5 mm	0.197 "	5 mm	70	SMD	22.2 V	Neutral White	210 lm/W	210 lm	Surface Mount	200 mA	120 °	1.5 °C/W	0.8 mm	0.031 "
ams-OSRAM USA INC. GW P9LR34.EM-L9M6-XX56-1-45-R18	45 mA	2020	5050 Metric	3500 K	0.197 in	5 mm	0.197 "	5 mm	80	SMD	22.2 V	Warm White	205 lm/W	205 lm 240	Surface Mount	200 mA	120 °	1.7 °C/W	0.8 mm	0.031 "	170 lm
ams-OSRAM USA INC. GW P9LR34.PM-M2M4-XX51-1-45-R18	45 mA	2020	5050 Metric		0.197 in	5 mm	0.197 "	5 mm	70	SMD	22.2 V	White	205 lm/W	205 lm	Surface Mount	200 mA	120 °	1.5 °C/W	0.8 mm	0.031 "
ams-OSRAM USA INC. GW P9LR34.EM-L9M6-XX51-1-45-R18	45 mA	2020	5050 Metric	6500 K	0.197 in	5 mm	0.197 "	5 mm	80	SMD	22.2 V	Cool White	205 lm/W	205 lm 240	Surface Mount	200 mA	120 °	1.7 °C/W	0.8 mm	0.031 "	170 lm
ams-OSRAM USA INC. GW P9LR34.EM-M1M6-XX55-1-45-R18	45 mA	2020	5050 Metric	4000 K	0.197 in	5 mm	0.197 "	5 mm	80	SMD	22.2 V	Neutral White	210 lm/W	210 lm	Surface Mount	200 mA	120 °	1.6 °C/W	0.8 mm	0.031 "	180 lm	240 lm
ams-OSRAM USA INC. GW P9LR34.PM-M3M4-XX53-1-45-R18	45 mA	2020	5050 Metric	5000 K	0.197 in	5 mm	0.197 "	5 mm	70	SMD	22.2 V	Cool White	210 lm/W	210 lm	Surface Mount	200 mA	120 °	1.5 °C/W	0.8 mm	0.031 "
ams-OSRAM USA INC. GW P9LR34.EM-M1M6-XX53-1-45-R18	45 mA	2020	5050 Metric	5000 K	0.197 in	5 mm	0.197 "	5 mm	80	SMD	22.2 V	Cool White	210 lm/W	210 lm	Surface Mount	200 mA	120 °	1.6 °C/W	0.8 mm	0.031 "	180 lm	240 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.11
		10	$ 0.72
		100	$ 0.47
	Digi-Reel®	1	$ 1.11
		10	$ 0.72
		100	$ 0.47
	Tape & Reel (TR)	1500	$ 0.37
		3000	$ 0.35
		7500	$ 0.34
		10500	$ 0.33

Description

General part information

GWP9LR34 Series

LED Lighting DURIS® S 8 White, Neutral 4000K 22.2V 45mA 120° 2020 (5050 Metric)
