AEDT-9140-B0B

Active

Broadcom Limited

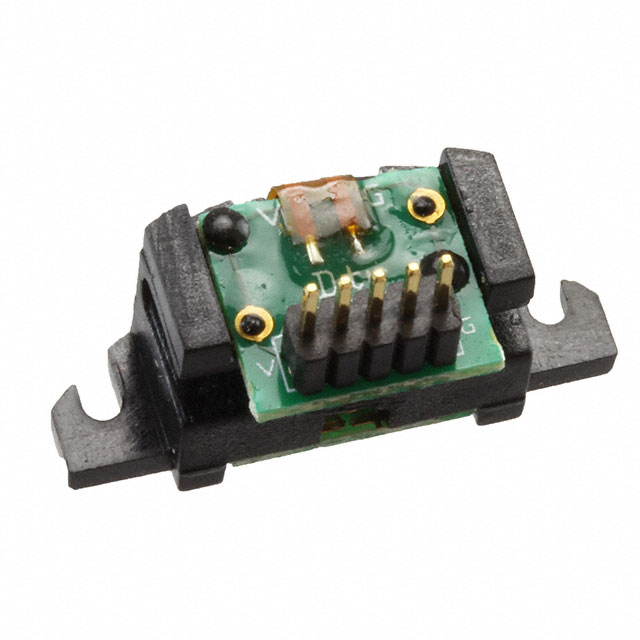

ROTARY ENCODER OPTICAL 1000PPR

Search across all available documentation for this part.

Active

Broadcom Limited

ROTARY ENCODER OPTICAL 1000PPR

Technical Specifications

Parameters and characteristics for this part

Specification	AEDT-9140-B0B

Actuator Type	Codewheel Not Included
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	1000
Termination Style	Terminal Pins

Part	Pulses per Revolution	Termination Style	Output Type	Mounting Type	Actuator Type	Encoder Type
Broadcom Limited AEDT-9140-E00	200	Terminal Pins	Quadrature with Index (Incremental)	Chassis Mount	Codewheel Not Included	Optical
Broadcom Limited AEDT-9140-C00	100	Terminal Pins	Quadrature with Index (Incremental)	Chassis Mount	Codewheel Not Included	Optical
Broadcom Limited AEDT-9140-B0B	1000	Terminal Pins	Quadrature with Index (Incremental)	Chassis Mount	Codewheel Not Included	Optical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	200	$ 23.85

General part information

Rotary Encoder Optical 1000 Quadrature with Index (Incremental)
