1530AP 8771000

Active

Belden Inc.

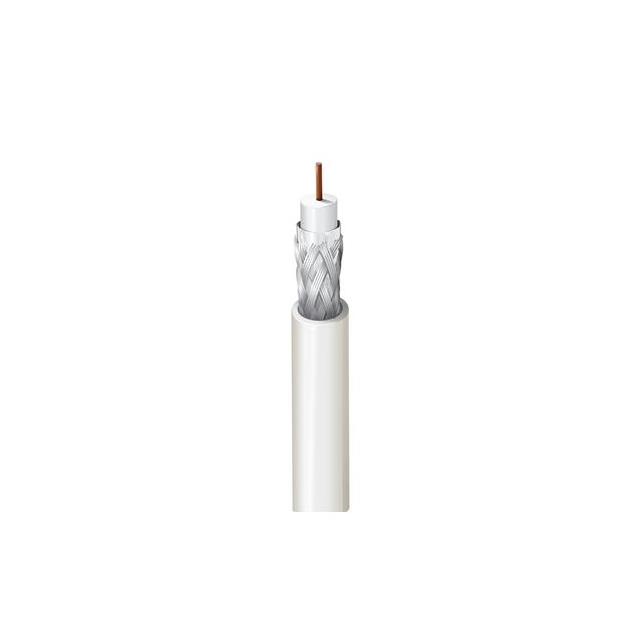

CABLE COAX PLEN RG-6 18AWG 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAX PLEN RG-6 18AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1530AP 8771000

Cable Group	RG-6
Cable Type	Coaxial - Plenum
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.17 in
Dielectric Diameter [diameter]	4.32 mm
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	5.97 mm
Jacket (Insulation) Diameter [diameter]	0.235 in
Jacket Color	Natural
Length	304.8 m
Length	1000 ft
Shield Coverage	90 %, 100 %
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Impedance	Jacket Color	Dielectric Material	Cable Group	Conductor Strand	Cable Type	Shield Material	Shield Coverage	Conductor Material	Wire Gauge	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length	VoP, Velocity of Propagation	Shield Type
Belden Inc. 1530AP 8771000	5.97 mm	0.235 in	75 Ohms	Natural	Foam Fluorinated Ethylene Propylene (FFEP)	RG-6	Solid	Coaxial - Plenum	Aluminum	90 % 100 %	Copper Coated Steel	18 AWG	0.17 in	4.32 mm	304.8 m	1000 ft	83	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.03

General part information

Coaxial - Plenum Cable 18 AWG RG-6 1000.0' (304.80m) 75 Ohms

Technical documentation and resources
