0192770001

Active

Molex

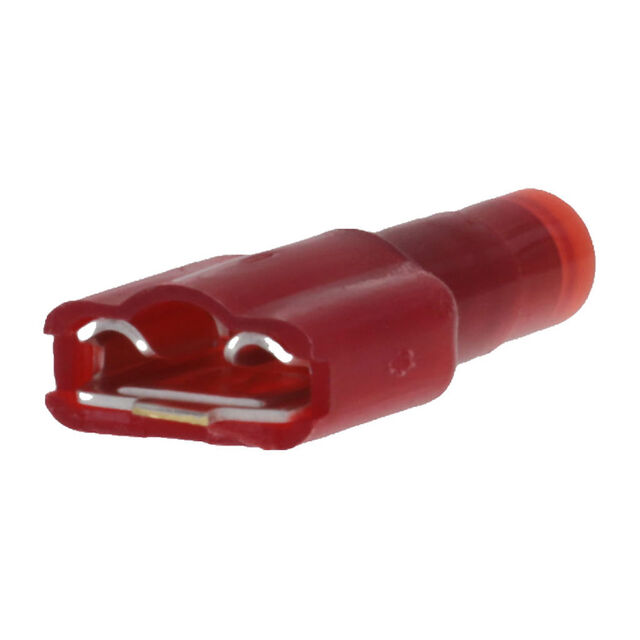

QUICK DISCONNECT TERMINAL 18-22AWG BRASS RED F 22.6MM TIN QUIXON™ T/R

Search across all available documentation for this part.

Active

Molex

QUICK DISCONNECT TERMINAL 18-22AWG BRASS RED F 22.6MM TIN QUIXON™ T/R

Technical Specifications

Parameters and characteristics for this part

Specification	0192770001

Color	Red
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter [diameter]	0.12 in
Insulation Diameter [diameter]	3.05 mm
Length - Overall [x]	0.89 in
Length - Overall [x]	22.61 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Color	Tab Width	Tab Width	Contact Finish	Mounting Type	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Terminal Type	Termination	Gender	Insulation
Molex 0192770007	Yellow	6.35 mm	0.25 in	Tin	Free Hanging (In-Line)	0.23 in	5.84 mm	12 AWG	10 AWG	Brass	0.032 in	0.81 mm	1.02 in	25.91 mm	Standard	Crimp	Female	Fully Insulated
Molex 0192770001	Red	6.35 mm	0.25 in	Tin	Free Hanging (In-Line)	0.12 in	3.05 mm	22 AWG	17.5 AWG	Brass	0.032 in	0.81 mm	0.89 in	22.61 mm	Standard	Crimp	Female	Fully Insulated
Molex 0192770002	Red	6.35 mm	0.25 in	Tin	Free Hanging (In-Line)	0.12 in	3.05 mm	22 AWG	17.5 AWG	Brass	0.032 in	0.81 mm	0.89 in	22.61 mm	Standard	Crimp	Female	Fully Insulated
Molex 0192770004	Blue	6.35 mm	0.25 in	Tin	Free Hanging (In-Line)	0.14 in	3.56 mm			Brass	0.032 in	0.81 mm	0.89 in	22.61 mm	Standard	Crimp	Female	Fully Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7500	$ 0.18

General part information

0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
