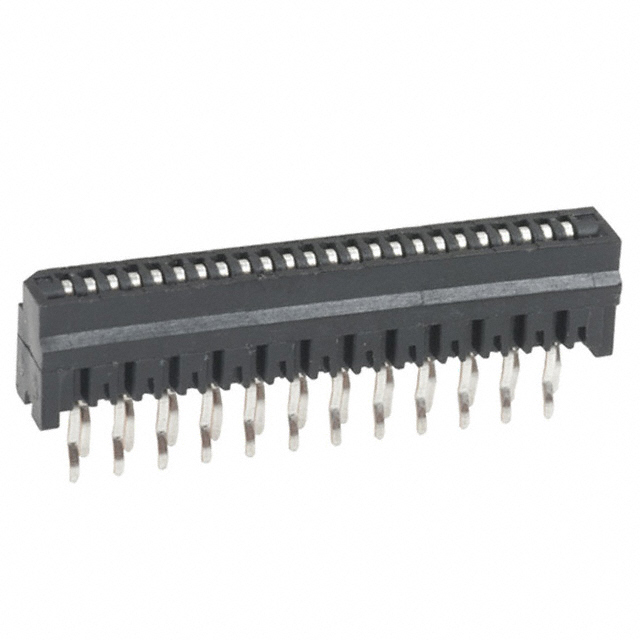

HLW24S-2C7LF

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 24POS 1MM PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 24POS 1MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	HLW24S-2C7LF

Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.33 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	5.9 mm
Height Above Board [z]	0.232 in
Housing Color	Black
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	30
Mounting Type	Through Hole
Number of Positions	24
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

Part	FFC, FCB Thickness	Flat Flex Type	Contact Finish	Connector/Contact Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Termination	Contact Material	Voltage Rating	Housing Color	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mating Cycles	Housing Material	Mounting Type
Amphenol ICC (FCI) HLW24S-2C7LF	0.33 mm	FFC FPC	Tin	Contacts Vertical - 1 Sided	UL94 V-0	85 °C	-55 °C	0.039 in	1 mm	Kinked Pin	Phosphor Bronze	100 V	Black	24	5.9 mm	0.232 in	30	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
