475010-313
ActiveLaird Thermal Systems, Inc.
PELTIR MS2,102,14,14,17,17,11,W8
Deep-Dive with AI
Search across all available documentation for this part.
475010-313
ActiveLaird Thermal Systems, Inc.
PELTIR MS2,102,14,14,17,17,11,W8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 475010-313 |
|---|---|
| Current - Max [Max] | 4.3 A |
| Delta Tmax @ Th | 87 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 7.31 mm |
| Number of Stages | 2 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 12.1 W |
| Size / Dimension [x] | 29.7 mm |
| Size / Dimension [y] | 29.7 mm |
| Voltage - Max [Max] | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 93.51 | |
Description
General part information
475010 Series

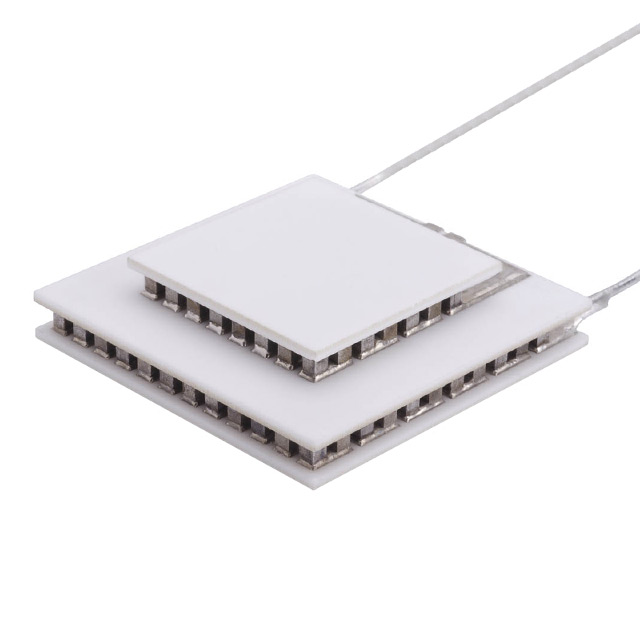

Peltier Module 12.1W @ 25°C 4.3 A 80°C
