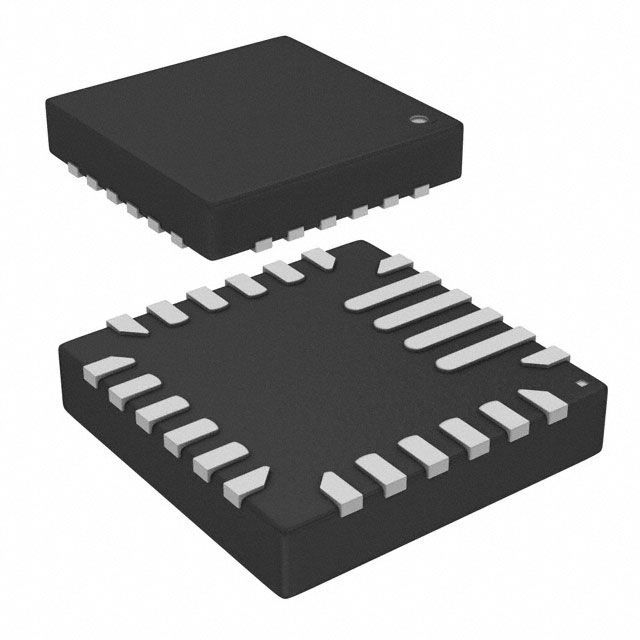

MPQ3326GR-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC LED DRVR LIN PWM 50MA 24QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ3326GR-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC LED DRVR LIN PWM 50MA 24QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ3326GR-AEC1-Z |
|---|---|
| Current - Output / Channel | 50 mA |
| Dimming | PWM, Analog, I2C |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-PowerVFQFN |
| Qualification | AEC-Q100 |
| Supplier Device Package | 24-QFN (4x4) |
| Type | Linear |
| Voltage - Supply (Max) [Max] | 16 V |
| Voltage - Supply (Min) [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.90 | |
| 10 | $ 2.60 | |||
| 25 | $ 2.46 | |||
| 100 | $ 2.13 | |||
| 250 | $ 2.02 | |||
| 500 | $ 1.93 | |||
| Digi-Reel® | 1 | $ 2.90 | ||
| 10 | $ 2.60 | |||
| 25 | $ 2.46 | |||
| 100 | $ 2.13 | |||
| 250 | $ 2.02 | |||
| 500 | $ 1.93 | |||
| Tape & Reel (TR) | 5000 | $ 1.93 | ||
Description
General part information
MPQ3326 Series
LED Driver IC 16 Output Linear Analog, I2C, PWM Dimming 50mA 24-QFN (4x4)
