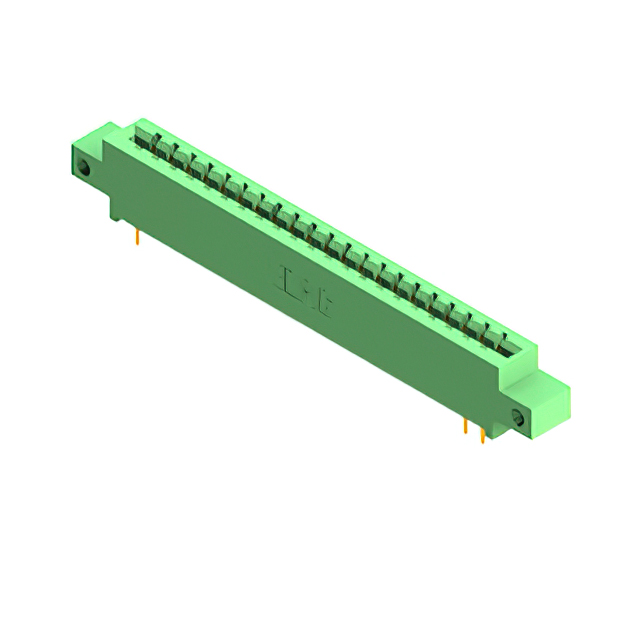

337-042-542-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
337-042-542-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-042-542-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
337-042 Series
...
| Part | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Read Out | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Number of Rows | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Color | Material - Insulation | Flange Feature | Card Type | Gender | Termination | Contact Finish | Termination Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Dual | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 2 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | Green | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Female | Wire Wrap | Gold | 2 | ||||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Single | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 1 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | Green | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Female | Wire Wrap | Gold | 1 | 42 | |||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Dual | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 2 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | Green | Polyester Thermoplastic | Side Mount Opening Unthreaded | Non Specified - Dual Edge | Female | Wire Wrap | Gold | 2 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Single | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 1 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | Green | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Female | Wire Wrap | Gold | 1 | 42 | |||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Single | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 1 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | Green | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Female | Wire Wrap | Gold | 1 | 42 | Card Guides | ||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Single | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 1 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | Green | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Female | Wire Wrap | Gold | 1 | 42 | |||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Single | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 1 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | Green | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Female | Wire Wrap | Gold | 1 | 42 | Card Guides | ||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Single | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 1 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | Green | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Female | Solder | Gold | 1 | 42 | |||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Dual | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 2 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | Green | Polyester Thermoplastic | Flush Mount Side Opening Unthreaded | Non Specified - Dual Edge | Female | Wire Wrap | Gold | 2 | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | Single | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 42 | 1 | 0.156 in | 3.96 mm | -40 °C | 105 ░C | Cantilever | Green | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Female | Wire Wrap | Gold | 1 | 42 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.27 | |
Description
General part information
337-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Documents
Technical documentation and resources
