1004796

Active

Kyocera AVX

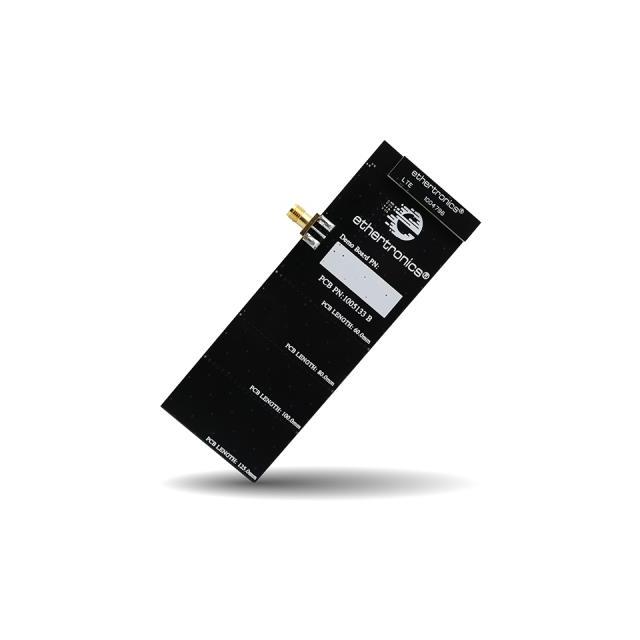

ANTENNA PCB, LTE MRR

Search across all available documentation for this part.

Active

Kyocera AVX

ANTENNA PCB, LTE MRR

Technical Specifications

Parameters and characteristics for this part

Specification	1004796

Antenna Type	Chip
Applications	Sigfox, LTE, LoRa, LPWAN
Frequency (Center/Band)	600 MHz, 1.9 GHz, 2.7 GHz, 850 MHz, 700 MHz, 750 MHz, 1.8 GHz, 2.1 GHz, 900 MHz
Frequency Group	Wide Band
Frequency Range [Max]	698 MHz, 2.2 GHz, 2.7 GHz, 960 MHz
Frequency Range [Min]	2.5 GHz, 600 MHz, 1.71 GHz, 698 MHz
Gain	3.1 dBi, 1.5 dBic, 1.6 dBi, 1.7 dBi
Height (Max)	3.2 mm
Height (Max) [Max]	0.126 in
Mounting Type	Surface Mount
Number of Bands	9
Power - Max [Max]	2 W
RF Family/Standard	802.15.4, Cellular
Termination	Solder
VSWR	3, 2.5

Part	Applications	Number of Bands	Antenna Type	Mounting Type	Frequency (Center/Band)	Gain	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [Max]	Height (Max)	Frequency Group	Power - Max [Max]	VSWR	RF Family/Standard	Termination
Kyocera AVX 1004796	LoRa LPWAN LTE Sigfox	9	Chip	Surface Mount	1.8 GHz 1.9 GHz 2.1 GHz 2.7 GHz 600 MHz 700 MHz 750 MHz 850 MHz 900 MHz	1.5 dBic 1.6 dBi 1.7 dBi 3.1 dBi	1.71 GHz 2.5 GHz 600 MHz 698 MHz	2.2 GHz 2.7 GHz 698 MHz 960 MHz	0.126 in	3.2 mm	Wide Band	2 W	2.5 3	802.15.4 Cellular	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA LTE, LoRa, LPWAN, Sigfox Chip Solder Surface Mount
