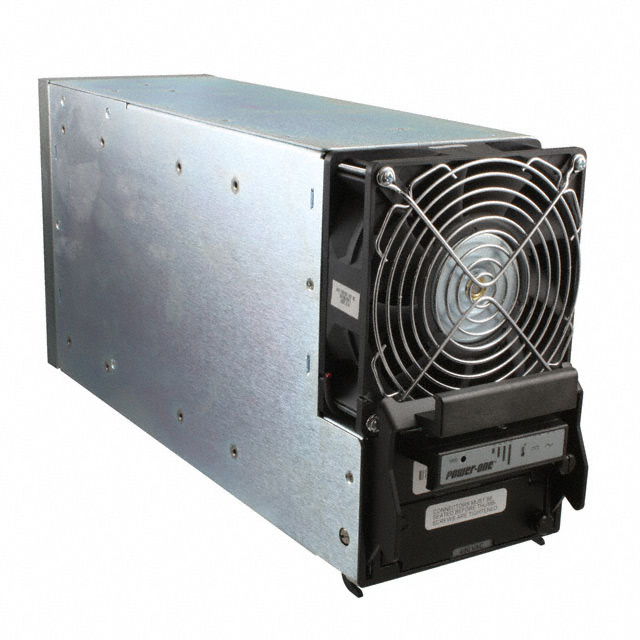

FXP7000-48-SG

Active

EOS Power India Private Ltd

AC/DC CONVERTER 48V 7000W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 48V 7000W

Technical Specifications

Parameters and characteristics for this part

Specification	FXP7000-48-SG

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	145 A
Efficiency	91 %
Features	Standby Output, Hot Swappable, Adjustable Output, I2C Interface, Remote Sense
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	7000 W
Size / Dimension [x]	16.96 "
Size / Dimension [x]	430.8 mm
Size / Dimension [y]	203.2 mm
Size / Dimension [y]	8 in
Size / Dimension [z]	127 mm
Size / Dimension [z]	5 in
Type	Front End
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Number of Outputs	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Minimum Load Required	Features	Voltage - Isolation	Efficiency	Mounting Type	Applications	Voltage - Output 1	Approval Agency
EOS Power India Private Ltd FXP7000-48-SG	7000 W	203.2 mm	16.96 "	430.8 mm	127 mm	8 in	5 in	Front End	1	145 A	70 °C	0 °C		Adjustable Output Hot Swappable I2C Interface Remote Sense Standby Output	4000 V	91 %	Rack Mount	ITE (Commercial)	48 V	CE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4250.00

General part information

Front End AC DC Converters 1 Output 48V 180 ~ 264 VAC, 342 ~ 528 VAC (3 Phase) Input
