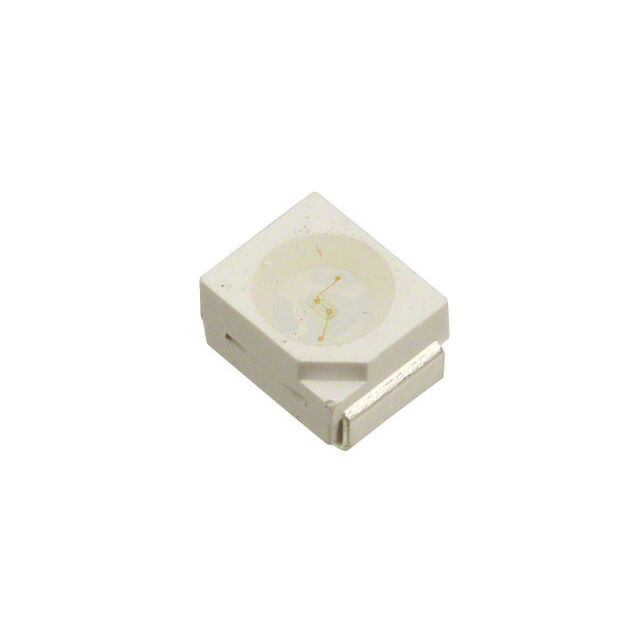

CLM1B-GKW-CVBXA793

Unknown

Cree LED

LED GREEN CLEAR 2PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLM1B-GKW-CVBXA793

Unknown

Cree LED

LED GREEN CLEAR 2PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLM1B-GKW-CVBXA793

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	2.05 mm
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	1570 mcd
Mounting Type	Surface Mount
Package / Case	2-PLCC
Supplier Device Package	2-PLCC
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Dominant [custom]	527 nm

CLM1B Series

Part	Package / Case	Height (Max) [Max] [z]	Lens Style	Wavelength - Dominant	Color	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Lens Size [y]	Lens Size [x]	Mounting Type	Millicandela Rating	Current - Test	Configuration	Lens Transparency	Viewing Angle	Lens Color	Wavelength - Dominant [custom]	Lens Size [diameter]
Cree LED CLM1B-RKB-CVAVBBB3	2-PLCC	2.05 mm	Rectangle with Flat Top	621 nm	Red	2-PLCC	2.1 V	2.8 mm	3.2 mm	2.8 mm	3.2 mm	Surface Mount	560 mcd	20 mA
Cree LED CLM1B-AKW-CUBVA353	2-PLCC	2.05 mm		591 nm	Amber	2-PLCC	2.1 V					Surface Mount	730 mcd	20 mA	Standard	Clear	120 °	Colorless
Cree LED CLM1B-BKW-CTAUB363	2-PLCC	2.05 mm		470 nm	Blue	2-PLCC	3.2 V					Surface Mount	495 mcd	20 mA	Standard	Clear	120 °	Colorless
Cree LED CLM1B-AKB-CUBVB343	2-PLCC	2.05 mm	Rectangle with Flat Top	590 nm	Amber	2-PLCC	2.1 V	2.8 mm	3.2 mm	2.8 mm	3.2 mm	Surface Mount	560 mcd	20 mA
Cree LED CLM1B-GKW-CVBXA793	2-PLCC	2.05 mm			Green	2-PLCC	3.2 V					Surface Mount	1570 mcd	20 mA	Standard	Clear	120 °	Colorless	527 nm
Cree LED CLM1B-RKB-CUBVBBB3	2-PLCC	2.05 mm	Rectangle with Flat Top	621 nm	Red	2-PLCC	2.1 V	2.8 mm	3.2 mm	2.8 mm	3.2 mm	Surface Mount	560 mcd	20 mA
Cree LED CLM1B-AKW-CUBVB353	2-PLCC	2.05 mm		591 nm	Amber	2-PLCC	2.1 V					Surface Mount	840 mcd	20 mA	Standard	Diffused	120 °	White
Cree LED CLM1B-AKW-CUAVB253	2-PLCC	2.05 mm		591 nm	Amber	2-PLCC	2.1 V					Surface Mount	785 mcd	20 mA	Standard	Diffused	120 °	White
Cree LED CLM1B-AKW-CVAVB353	2-PLCC	2.05 mm		591 nm	Amber	2-PLCC	2.1 V					Surface Mount	915 mcd	20 mA	Standard	Diffused	120 °	White
Cree LED CLM1B-AKC-CVCVC253	2-PLCC	2.05 mm		591 nm	Amber	2-PLCC	2.3 V	2.8 mm	3.2 mm			Surface Mount	1150 mcd	20 mA						2.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLM1B Series

Green 527nm LED Indication - Discrete 3.2V 2-PLCC
